7. Simple Operation Procedure
61
51

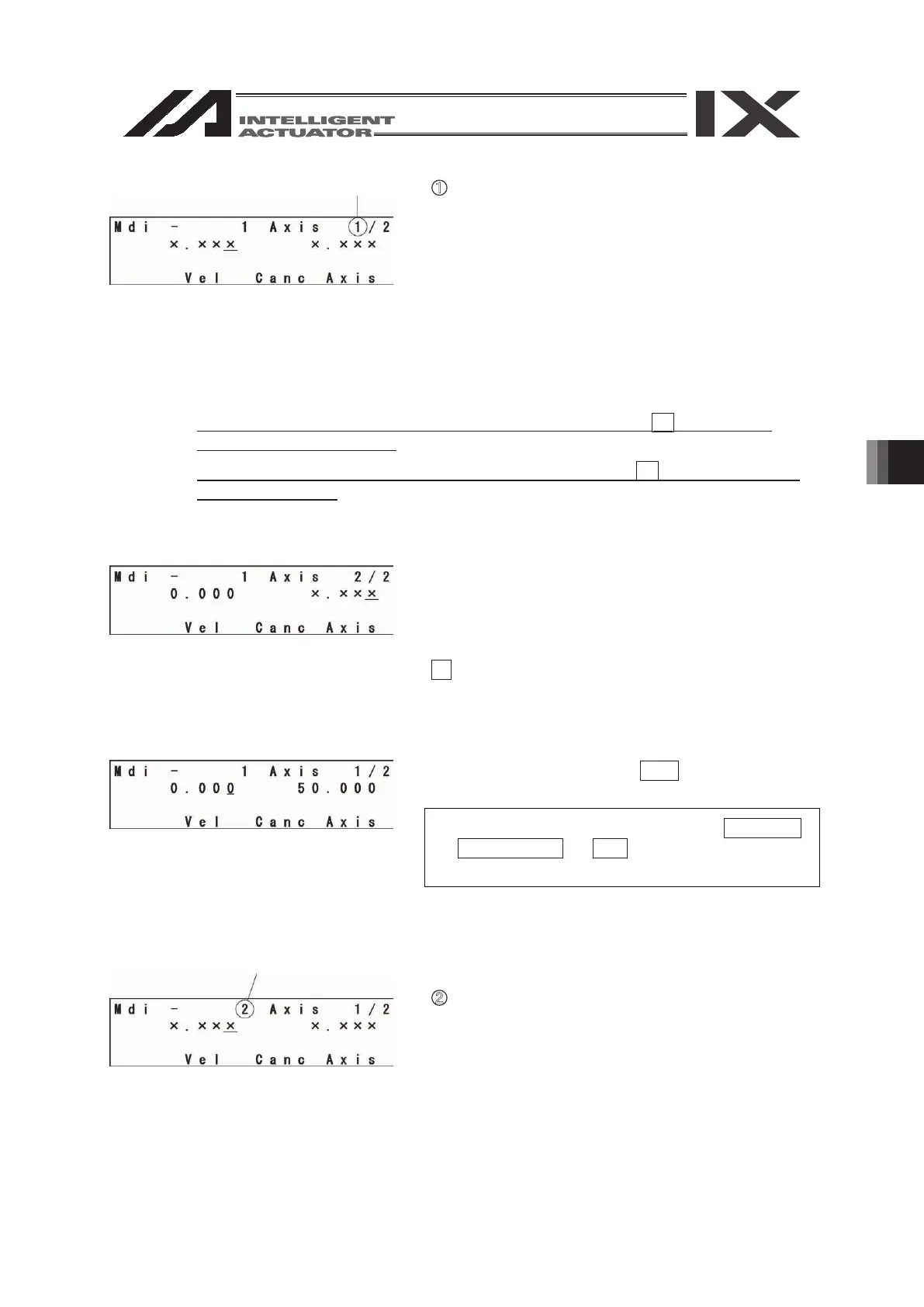

① Data input for the first point
Input 0 (number) and press the return key, 0.000 will
be displayed and then the axis No. changes to 2 and
the cursor position moves to the second axis position
data.
* Position data can be input as 4 digit integer having 3 decimal places. This is the
maximum amount and the range is different by actuator type, so, please check the
catalogs.
* In the case of the 5th and 6th axes of X-SEL-PX/QX, press the F4
(Axis) key to
select the 5th and 6th axes.
Input 50 at the second axis position data and press
return key. (*Every press of return key, the cursor
position moves. When you miss input, place the
cursor to the miss input position and write over.)
Also you can return the input data to x.xxx with the
F3 (Canc) key.
Transmit the data with the WRT key, position No.
forwards 1 and becomes 2.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting
the data, the input data will be invalid.
② Data input for the second point
Input 50 on the first axis position data and press
return key.
A
xis No. on the cursor location
Position No. 2
* In the case of the 5th to 8th axes of X-SEL-RX/SX, press the F4 (Axis) key to select
the 5th to 8th axes.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
