7. Simple Operation Procedure
70
60

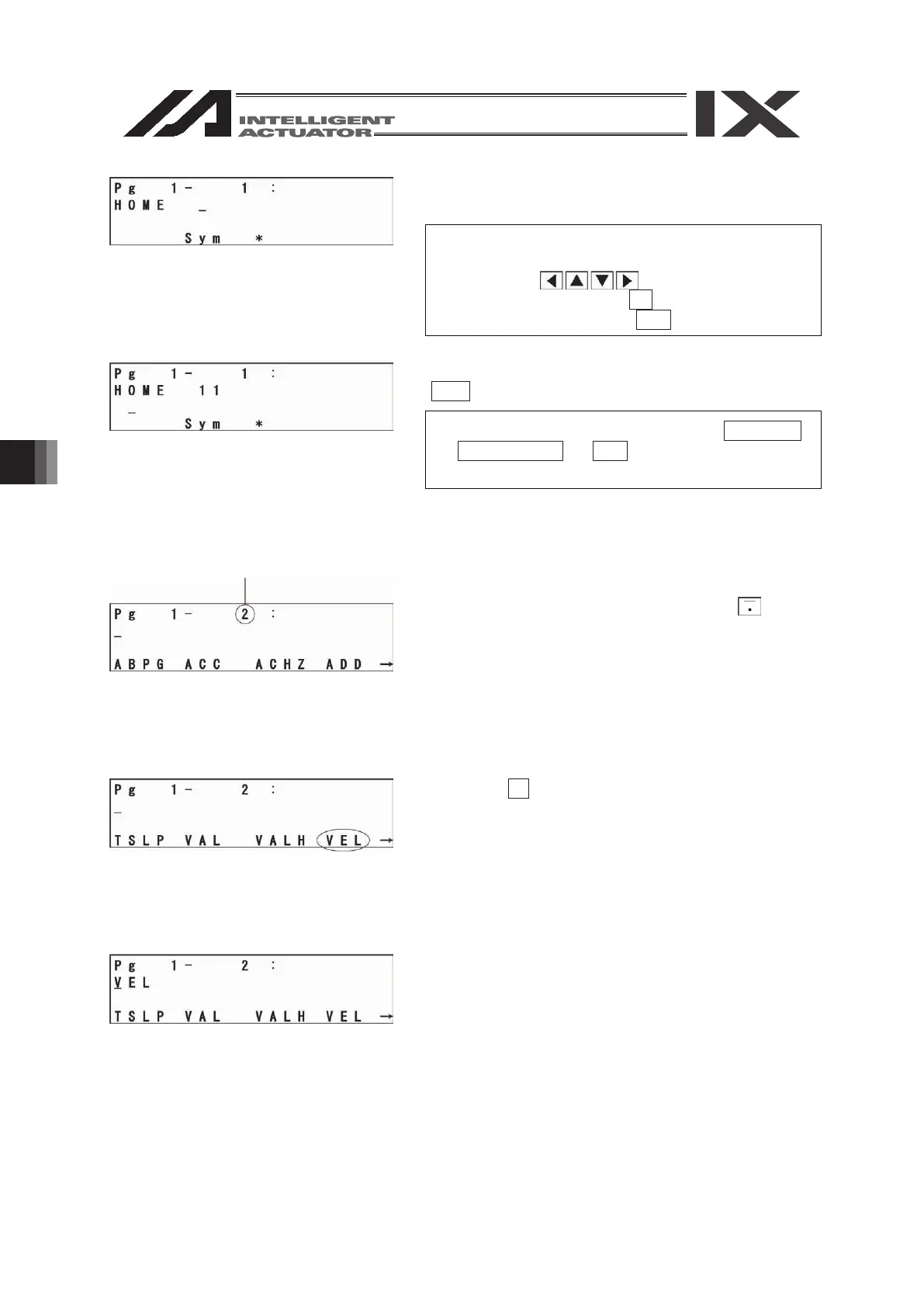

The cursor moves to operation 1.
Input 11 and press the return key.
When you redo an input
Move the cursor where you want to redo an input by
pressing the
key and return key.
Write over or delete with BS (backspace) key. Or
redo from step No. by using ESC key.
Transmit data key to the controller by pressing the
WRT key. Step No. moves to 2.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting
the data, the input data will be invalid.
Press the 10 key, 2 or SF (shift) key and
key to
search VEL.
Select the F4 key (VEL).
Press the return key.
Step No. 2

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
