7. Simple Operation Procedure
71
61

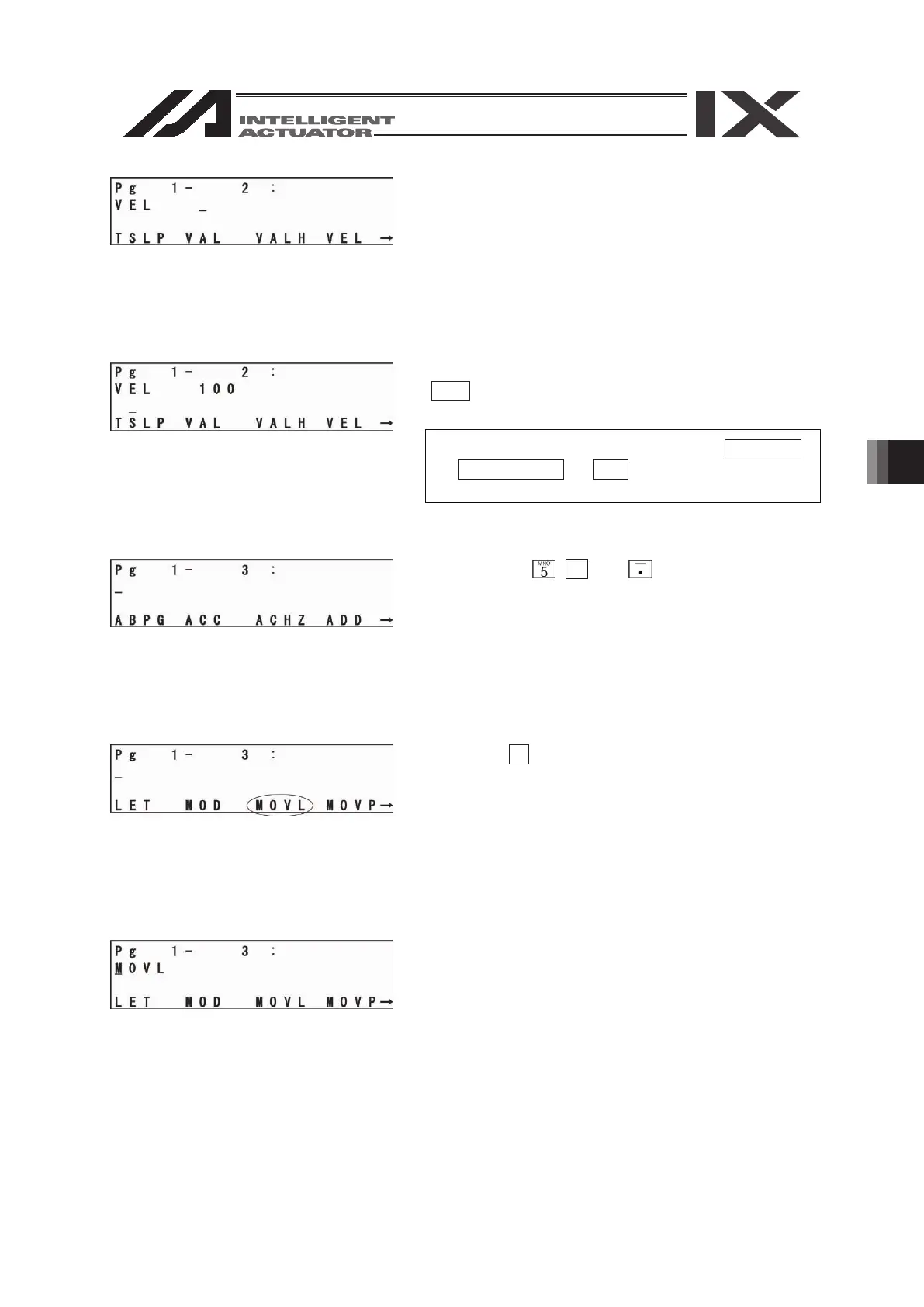

Here, input the velocity* as 100, and press the return
key.
* Check the maximum velocity listed in the catalogs.
When velocity is input into position data, priority is
given there.
Transmit the data to the controller by pressing the
WRT key.
The cursor moves to step No. 3.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting
the data, the input data will be invalid.
By using the
, SF and keys, this will display
the MOVL.
Select the F3 key (MOVL).
Press the return key.
The cursor moves to operation 1.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
