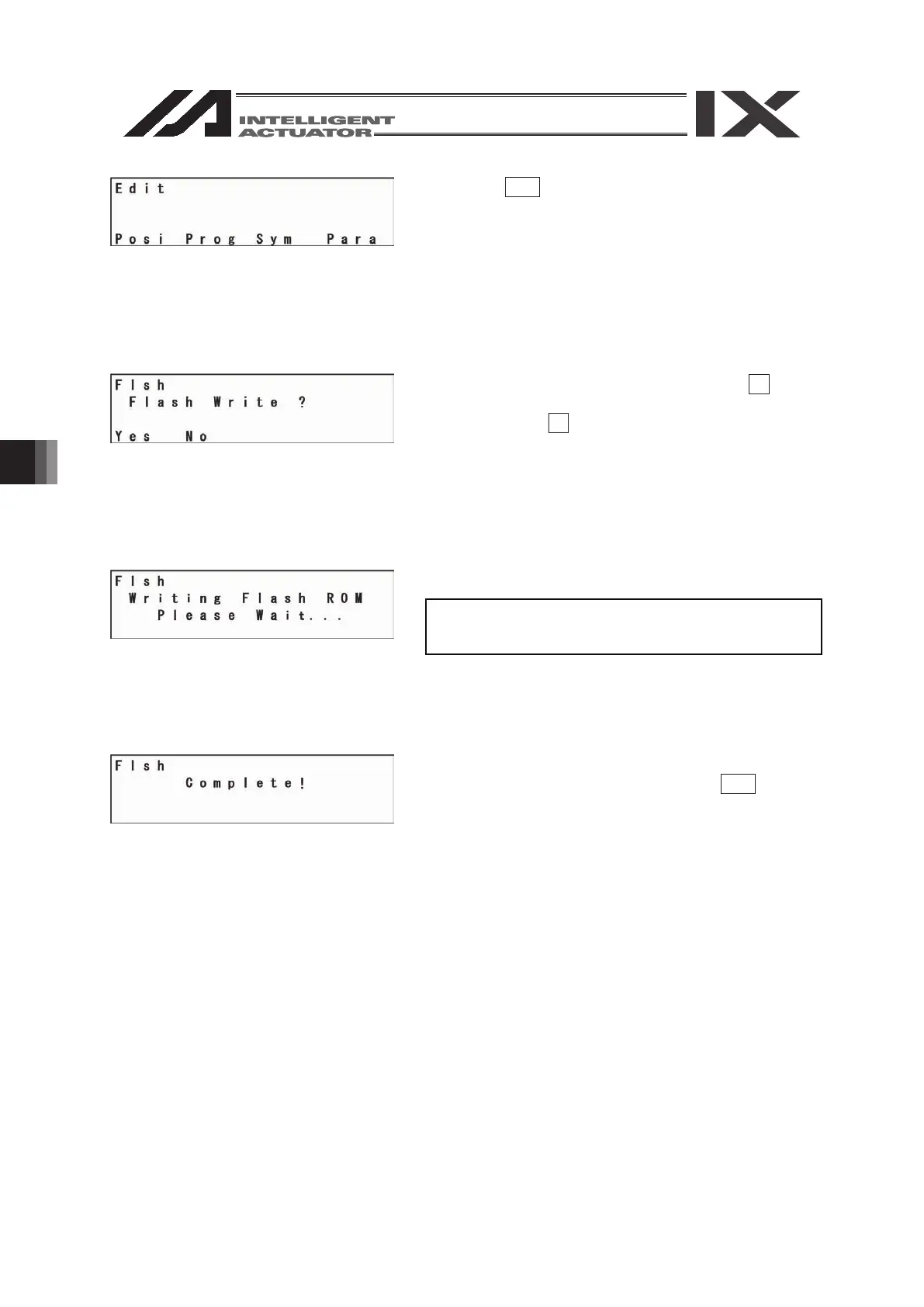

7. Simple Operation Procedure

Press the ESC key.

To write the data to Flash ROM, press the F1 (Yes)

key.

If not, press the F2 (No) key.

During Flash ROM writing, “Please Wait....” blinks.

* Never shut off the power to the controller

during Flash ROM writing.

Flash ROM writing is complete.

Return to the edit mode screen with the ESC key.
