10. Remove the Slim Blank Front Cover if it is installed. Push the latch 1 up
toward the Slim Blank and begin to pull the blank out of the Slim Tray. Grasp
the Slim Blank 2 and slide it out of the enclosure.
11. Attach the Slim Drive Latch 1 to the new DVD Drive 2 and insert both
into the slim drive bay until they click into place.
12. Complete the 7226 Storage Enclosure Service Procedure. See “Completing the
7226 Storage Enclosure Service Procedure” on page 177 for the correct
procedure.
2
ROLSOS838a-0
1
1

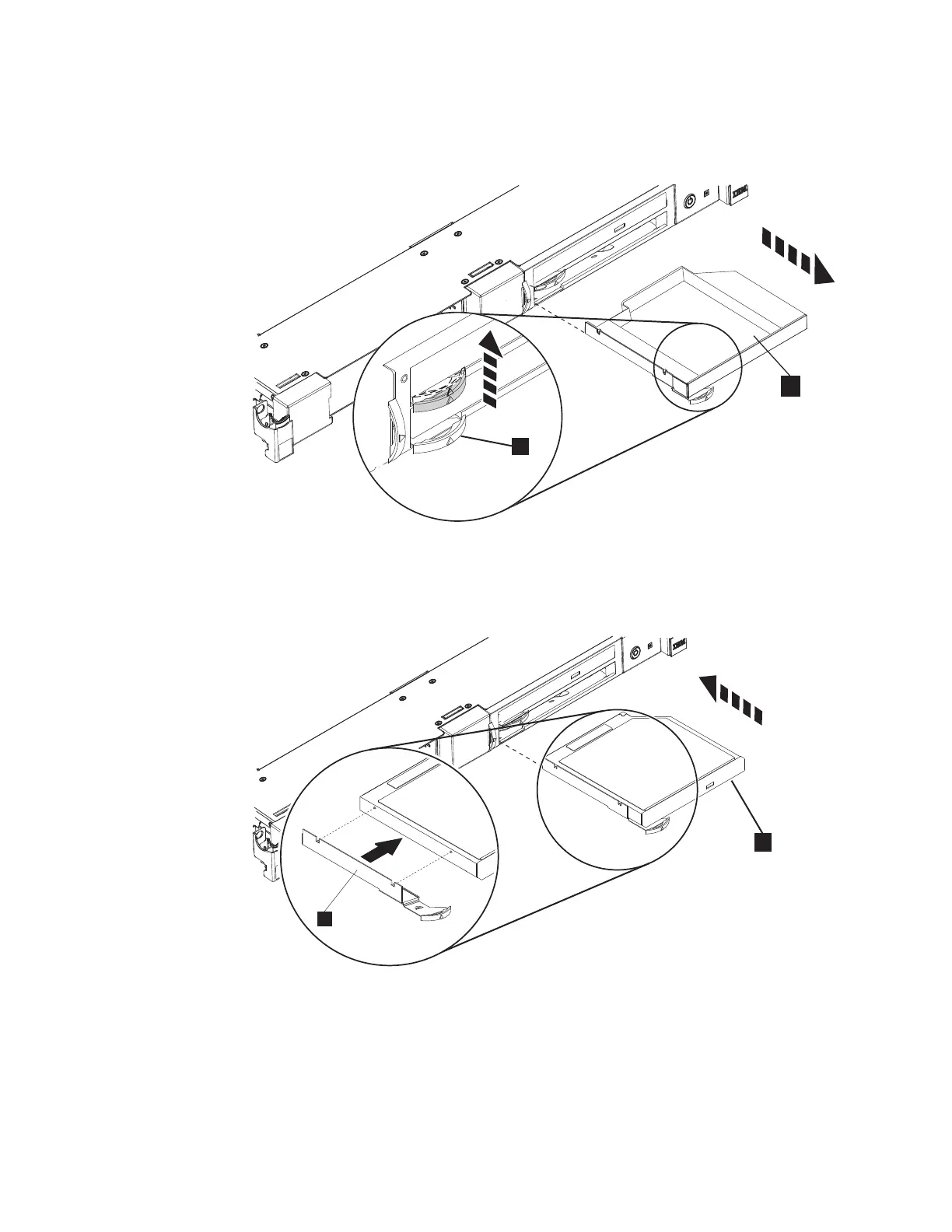

Figure 70. Remove Slim Blank Front Cover
2
ROLSOS870a-0
1
Figure 71. Inserting a DVD
150 7226 Storage Device Enclosure Setup, Operator and Service Guide
