Installing the Cable Management Arm
To install the Cable Management Arm, complete the following steps:
Note: Do not attach the power cord or other cables to the 7226 Storage Enclosure
until you are instructed to do so. The 7226 Storage Enclosure and the
computer system that it is attached to will be powered off before the cables
are attached.
1. Ensure that the slide rails are correctly installed. See “Installing the Slide Rails”
on page 14
2. The cable-management arm can be installed on either side of the 7226 Storage
Enclosure. The following figure shows it being installed on the left side. To
install the cable-management arm on the right side, follow the instructions and

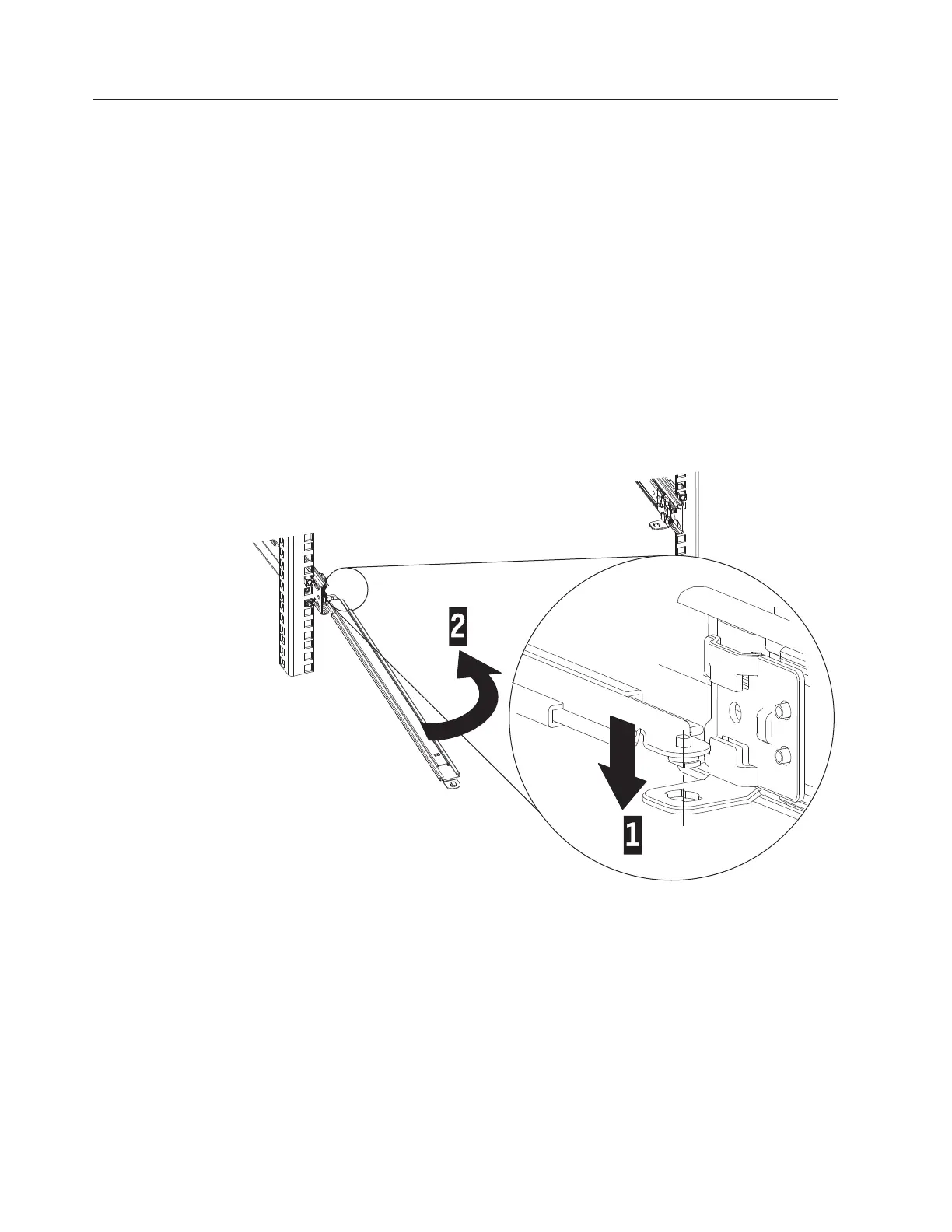

install the hardware on the opposite side. Connect the end of the support arm
with the "UP" designation 1 to the same slide rail to which you plan to attach
the cable-management arm so that you can swing the other end of the support
arm 2 toward the rack.
ROLSOS806-0
UP
UP
Rack Rear
Figure 10. Support arm connection
18 7226 Storage Device Enclosure Setup, Operator and Service Guide
