IBM 7226 Service Manual

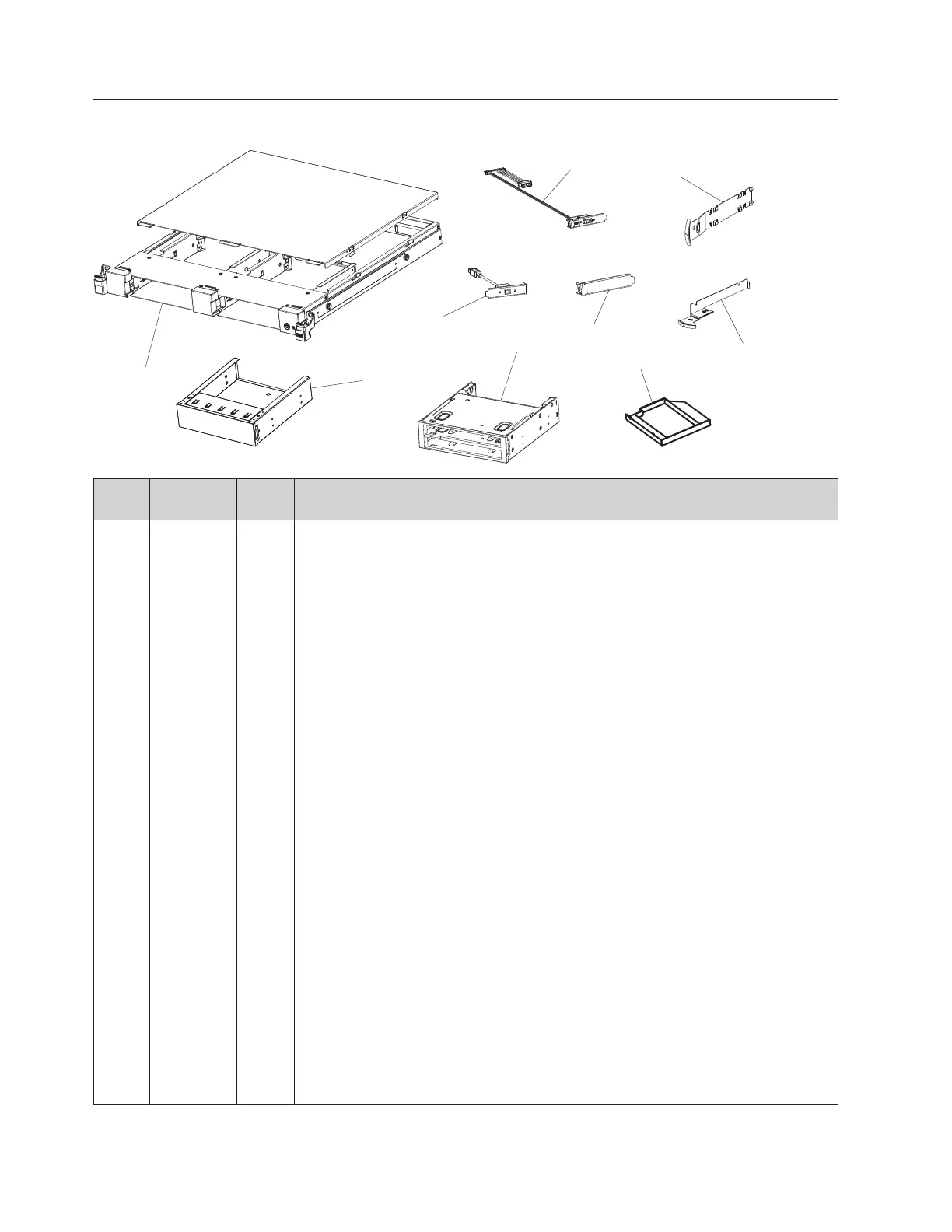

Assembly 1: Parts Diagram
1
2
6
3
4
8
7
9
ROLSOS516-0
1
5
Asm–
Index
Part
Number Units Description
1–1 46C2613 1 Chassis FRU, 7226
–2 46C1753 AR Single SAS Interface FRU
–3 46C1754 AR USB Interface FRU
–4 46C1755 AR Blank Backplate FRU
–5 46C1756 AR Blank Half-High Tray FRU
–6 46C1757 AR Half-High Drive Latch FRU
–7 46C1758 AR Slim Tray FRU
–8 46C1759 AR Slim Drive Latch FRU
–9 46C1760 AR Slim Blank Front Cover FRU
–00 46C2358 1 Slide Mounting Rail Kit
–00 46C1597 1 Cable Management Arm Kit
–00 46C2007 AR HH LTO-5 SAS Tape Drive FRU
–00 46X5683 AR HH LTO-5 SAS Tape Drive V2 FRU
–00 95P7981 AR HH LTO-5 Fibre Channel Tape Drive FRU
–00 23R9723 AR DAT160 SAS Tape Drive FRU
–00 46C2458 AR DAT160 USB Tape Drive FRU
–00 46C5380 AR RDX 2.0 Docking Station FRU
–00 46C2346 AR RDX 3.0 Docking Station FRU
–00 44V4220 AR DVD-RAM Drive FRU
–00 46C1761 AR SATA/SAS Re-driver Card FRU
–00 46C2592 AR SATA/USB Converter Card FRU
–00 46C2009 AR LTO-5 Test Tape
–00 35L2086 AR Universal LTO Cleaning Cartridge
–00 23R5636 AR DAT160 Test Tape
–00 23R5638 AR DAT160 Cleaning Cartridge
–00 18P8166 AR DVD-RAM Test Disk
–00 46C2272 AR 5.5M SAS Cable FRU
–00 44E8891 AR 3M USB Cable FRU
–00 46C2447 AR 3M Quad External SAS Cable FRU
–00 46C2590 AR Fibre Channel Interface FRU
–00 46C2591 AR 5M Fibre Channel Cable FRU
194 7226 Storage Device Enclosure Setup, Operator and Service Guide
