Removing the Cable Management Arm

To remove the Cable Management Arm, complete the following steps:

Note: The cable-management arm can be installed on either side of the server. The

following figures show it being removed from the left side. To remove the

cable-management arm from the right side, follow the instructions and

remove the hardware from the opposite side.

1. Ensure that the system and the 7226 Storage Enclosure are powered off.

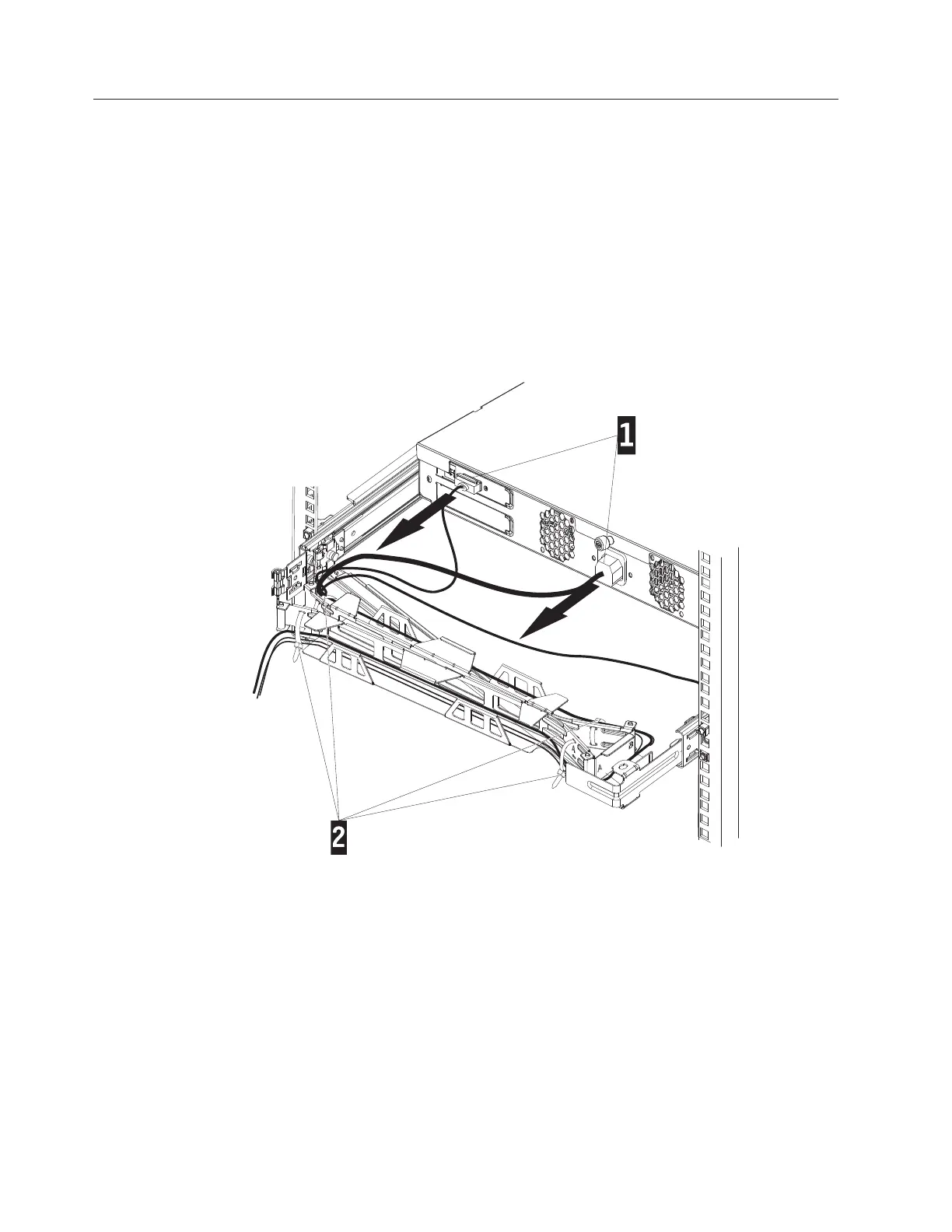

2. Remove the power cords and other cables from the rear of the 7226 Storage

Enclosure 1. Remove the cable ties and fasteners from the cable-management

arm 2 and remove the power cords and other cables from the

cable-management arm.

ROLSOS814-0

Figure 19. Disconnect Cables

24 7226 Storage Device Enclosure Setup, Operator and Service Guide
