Indicator LEDs
The half high LTO has the following indicator LEDs.
Status LEDs
Two status LEDs and their ISO symbols appear on the drive as follows:
1 Cartridge Unload Button
2 Ready LED
3 Encryption Key
4 Fault LED
5 Single-character display (SCD)
6 SCD dot
Notes:
1. The recommended preventative maintenance cleaning frequency is
approximately 100 tape motion hours or when the drive indicates cleaning is
required. Tape motion hours are defined as the time the tape drive is moving
tape.
2. When a fault occurs, the drive causes AIX to log an information error
(TAPE_ERR6) in the AIX log, indicating that the tape drive needs to be cleaned.
3. Use only IBM media. IBM only supports the use of IBM media and IBM
cleaning cartridges.
4. When the tape drive indicates that the drive needs to be cleaned, it is the
customer's responsibility to clean the tape drive with the recommended
cleaning cartridge.
Single Character Display (SCD) Panel
The Single Character Display (SCD) Panel 4 and the SCD dot 5 are used to
report permanent errors occurring on the drive.
1
3
4
5
2
ROLSOS507-0
6

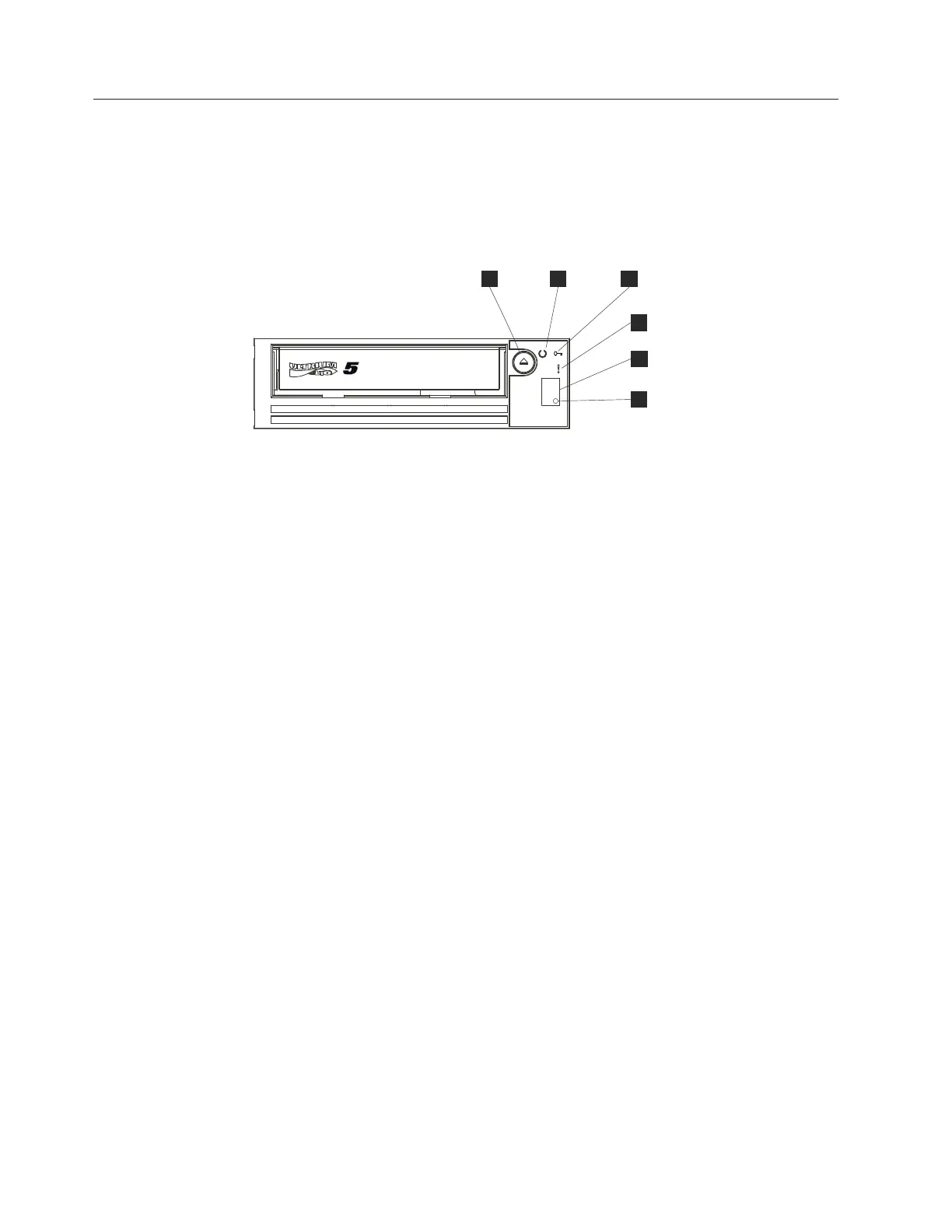

Figure 35. Front View of the half high LTO Drive
66 7226 Storage Device Enclosure Setup, Operator and Service Guide
