The rear of the 7226 Storage Enclosure has the following components:
Back Plates
Back Plates 5 provide rear mounted cable connectors for the storage
devices in the 7226 Storage Enclosure.
Power Cable Connector
The 7226 Storage Enclosure receives power from a power source through a
cable connected to the power cable connector 6.
Cooling Fans
The 7226 Storage Enclosure utilizes two internal cooling fans to regulate
the internal temperature of the enclosure. Air exits the 7226 Storage
Enclosure at the cooling fan locations (7).
Note: To ensure proper operation, place the 7226 Storage Enclosure so that
the front of the enclosure and the cooling fan exits at the rear of the
enclosure have sufficient clearance to ensure airflow.
Note: The cooling fans are a part of the enclosure assembly and cannot be
replaced separately.
Thumbscrew
The Thumbscrew is used to attach or remove the top cover of the 7226
Storage Enclosure (8).
System Requirement
The following sections describe the host system requirements for the 7226 Model
1U3 Storage Enclosure.
The 7226 Model 1U3 storage enclosure attaches only to IBM Power p7 and p6
models. Software and hardware requirements are listed below.
Software requirements for IBM POWER7 models are:
v AIX:
– Version 5.3 with Technology Levels 5300-10 and 5300-11 and Service pack 5,
or later
– Supports all 7226 Tape (DAT160 and HHLTO5), RDX, and DVD-RAM drive
features
– Does not support 7226 HHLTO5 FC Tape Drive
v IBMi (OS/400) - Version 6.1.1, or later for the following 7226 drive features:
5
6
7
ROLSOS504-00
8

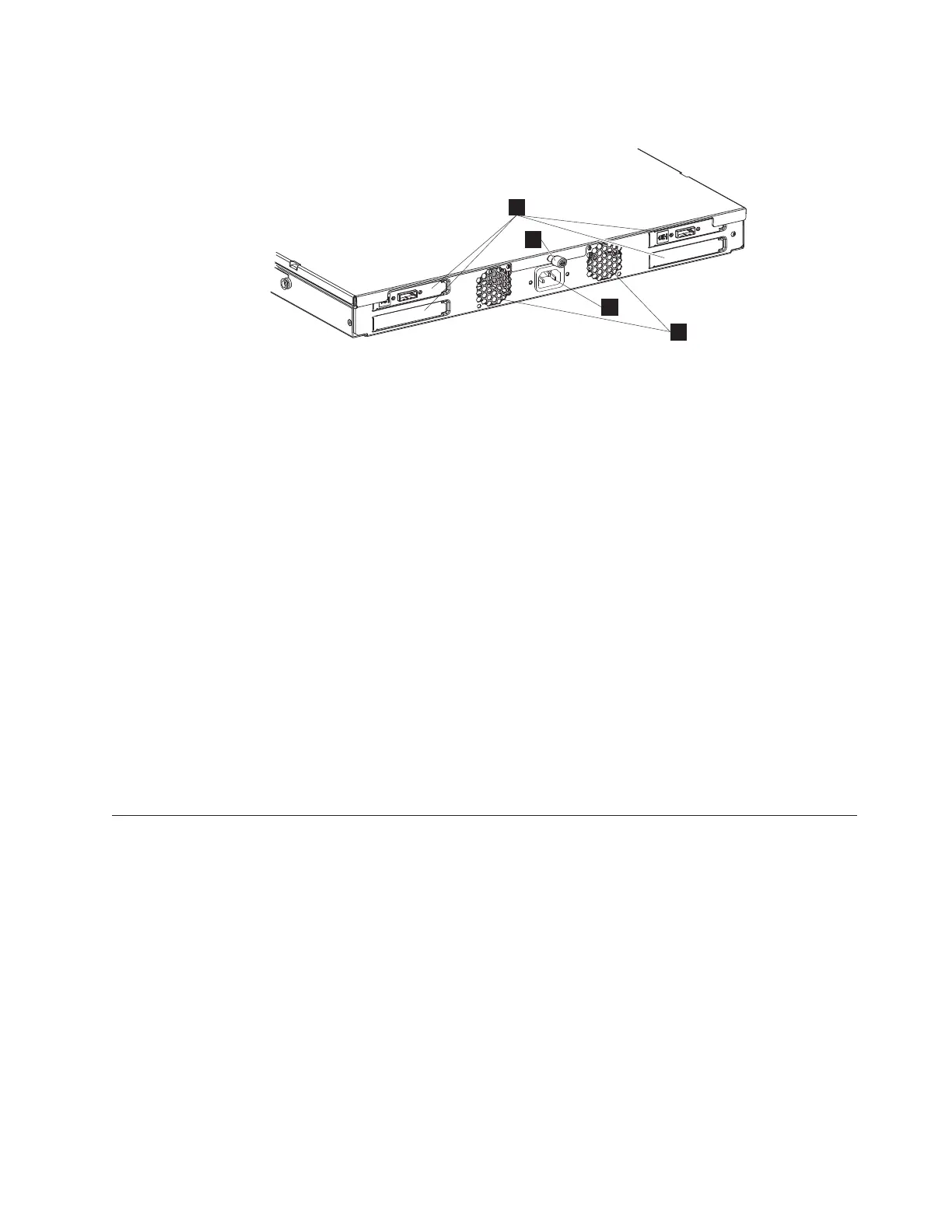

Figure 2. Rear view of the 7226 Storage Enclosure
Chapter 1. General Information 3
