Removing the 7226 Storage Enclosure from a Rack
To remove the 7226 Storage Enclosure from the rack, complete the following steps:
1. Ensure that the system and the 7226 Storage Enclosure are powered off and the
cables have been disconnected from the rear of the device.
2. If they are installed, remove the M6 screws from the front of the Right Slide
Rail 1 and the Left Slide Rail 2 using a flat-head or Phillips screwdriver.
3. Press both rack latches 1 and pull the 7226 Storage Enclosure 2 out from
the rack until the rails click, twice into place.
ROLSOS821-0

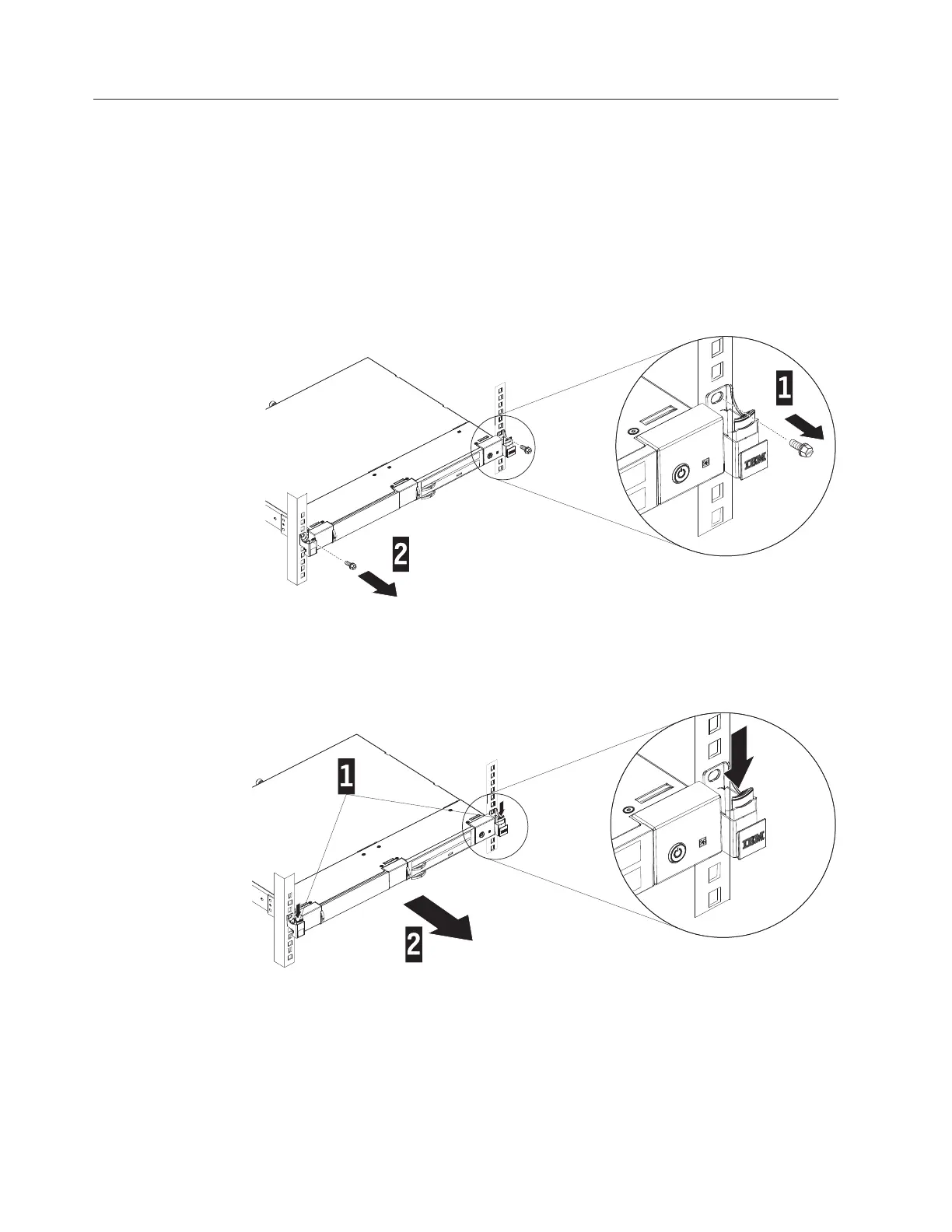

Figure 16. Remove M6 Screws from the Slide Rails
ROLSOS812-0
Figure 17. Release latches
22 7226 Storage Device Enclosure Setup, Operator and Service Guide
