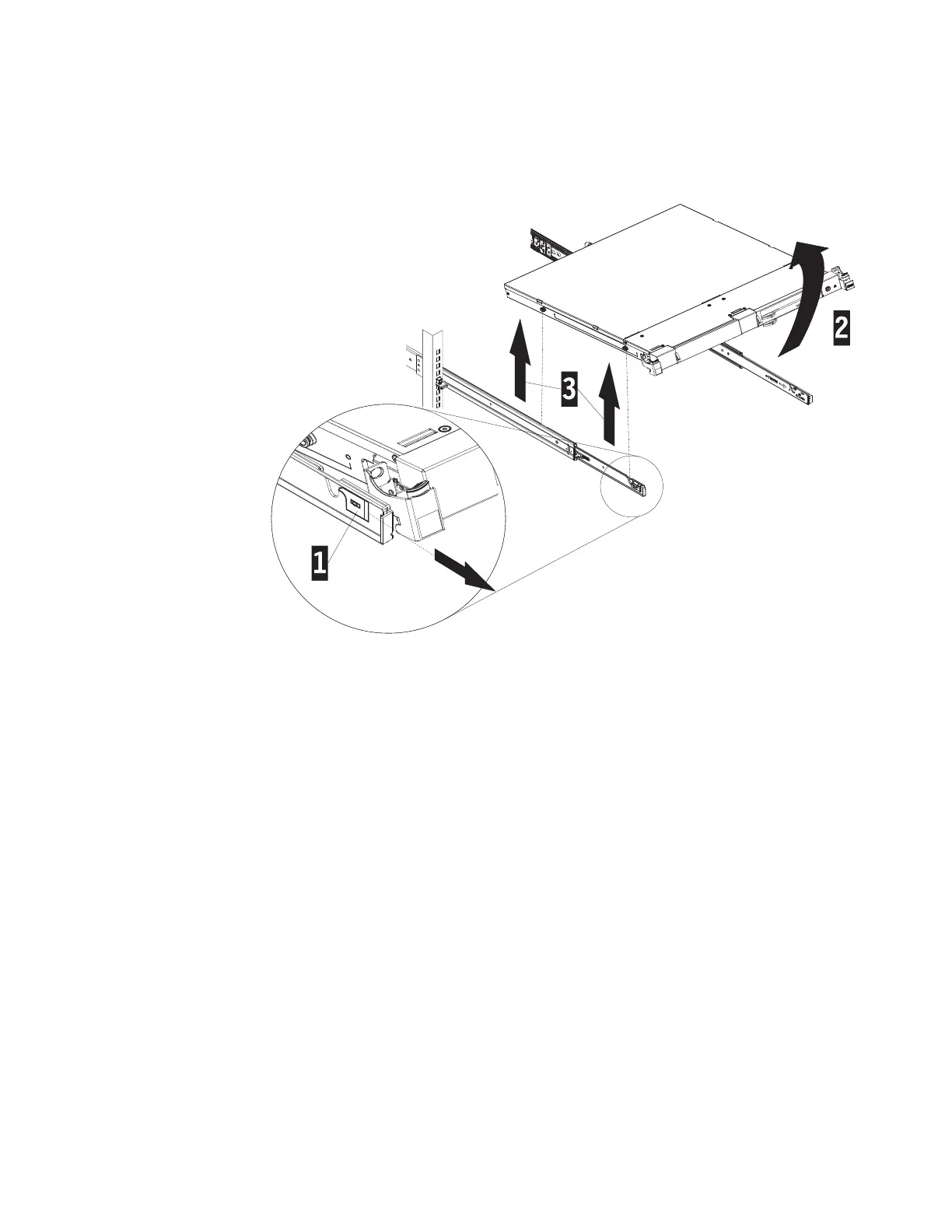

4. Pull the front locks forward 1 and tilt up the front of the 7226 Storage
Enclosure 2 until the front posts slip out of the two front slots. Lift the 7226
Storage Enclosure 3 until the rear posts slip out of the two rear slots and
place it in its new location.
ROLSOS813a-0
Figure 18. Slide rails extended, 7226 posts aligned with slots in rail
Chapter 2. Installing the 7226 Storage Enclosure into a Rack 23
