Replacing a SATA/SAS Re-driver Card or SATA/USB Converter Card

1. Prepare the 7226 Storage Enclosure for Service. See “Preparing the 7226

Storage Enclosure for Removal or Installation of a Storage Device or Other

Component” on page 138 for the correct procedure.

Note: The 7226 Storage Enclosure does not need to be extended from the rack

for this procedure.

2. Determine the location of the SATA/SAS re-driver card or SATA/USB

converter card to be replaced.

3. The DVD drive that attaches to the card should be removed to ease the

replacement of the card. Remove the DVD Drive from the Slim Drive Tray.

Push the latch 1 up toward the drive and begin to pull the drive out of the

Slim Tray. Grasp the drive 2 and slide it out of the enclosure.

ROLSOS833-0

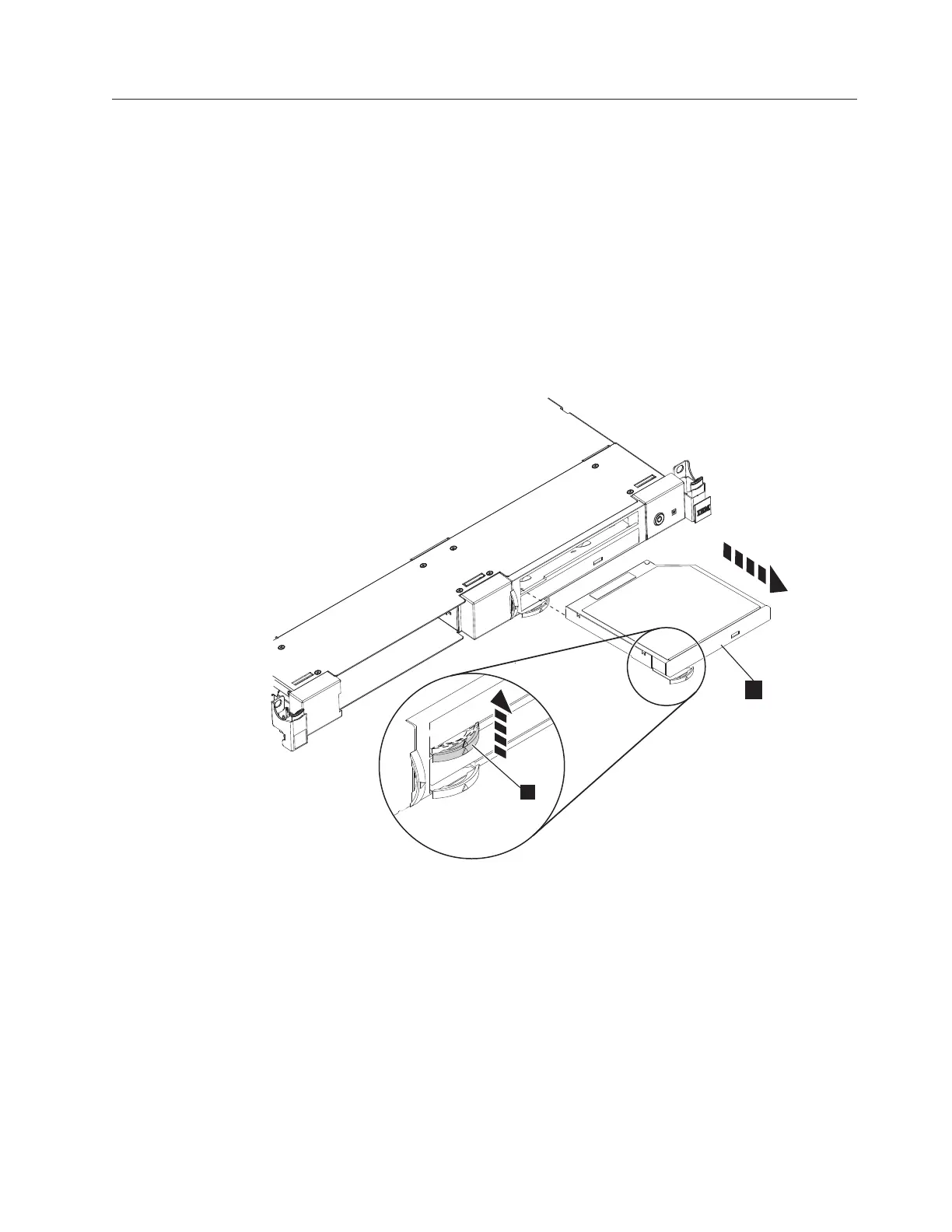

Figure 80. Remove a DVD Drive

Chapter 11. Installation and Removal Procedures 159
