Replacing an Enclosure
1. Prepare the 7226 Storage Enclosure for Service. See “Preparing the 7226
Storage Enclosure for Removal or Installation of a Storage Device or Other
Component” on page 138 for the correct procedure.
2. Remove the 7226 Storage Enclosure from the rack (See “Removing the 7226
Storage Enclosure from a Rack” on page 22) and place it on an ESD protected
work surface.
3. Remove the new Enclosure FRU from its packaging and install it in onto the
slide rails. Pull the slide rails forward 1 until they click, twice, into place.
Carefully lift the Enclosure FRU and tilt it into position over the slide rails so
that the rear posts 2 on the Enclosure FRU line up with the rear slots 3 on
the slide rails. Slide the server down until the rear posts slip into the two rear
slots, and then slowly lower the front of the Enclosure FRU 4 until the other
posts slip into the other slots on the slide rails. Make sure that the front latch
5 slides over the posts.
ROLSOS860a-0

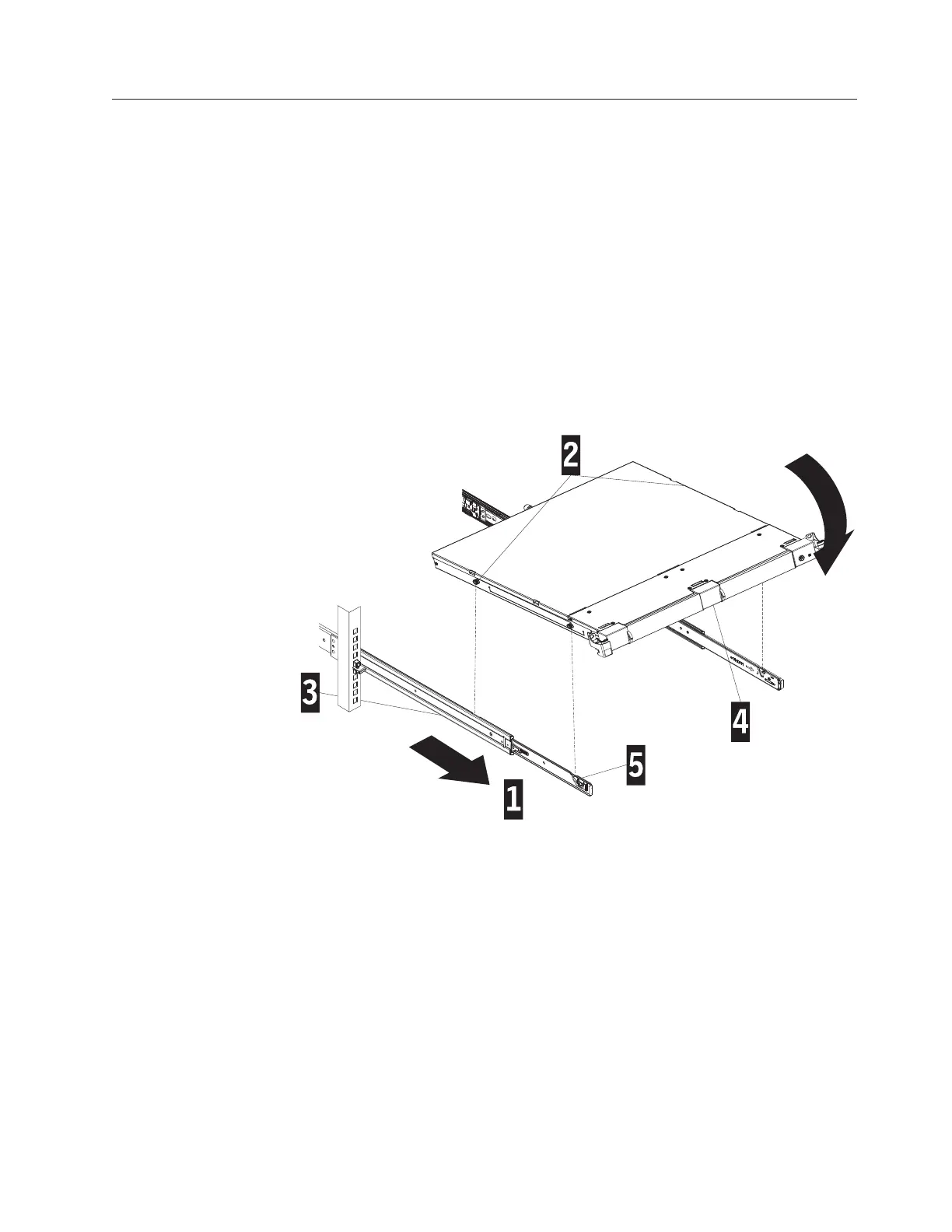

Figure 92. Install Enclosure FRU on Slide Rails
Chapter 11. Installation and Removal Procedures 167
