4. Note the location of the devices in the old 7226. Remove the Half High Bay
Blanks from those locations in the Enclosure FRU. To remove the Half High
Bay Blank, push the drive latch 1 toward the Half High Bay Blank and
begin to pull the blank out of the enclosure. Grasp the Bay Blank 2 and pull
it out of the enclosure.
5. Remove the Tape Drives, RDX Docking stations, and Slim Drive Tray
Assemblies from the 7226. To remove the devices, push the drive latch 1
toward the drive assembly and begin to pull the drive out of the enclosure.
Grasp the drive 2 and pull the assembly out of the drive bay. Disconnect the
cables 3 from the drive assembly.
Note: Do not remove the DVD-Ram Drives or the re-driver or converter cards
from the Slim Drive Assemblies.
2
ROLSOS861-0
1

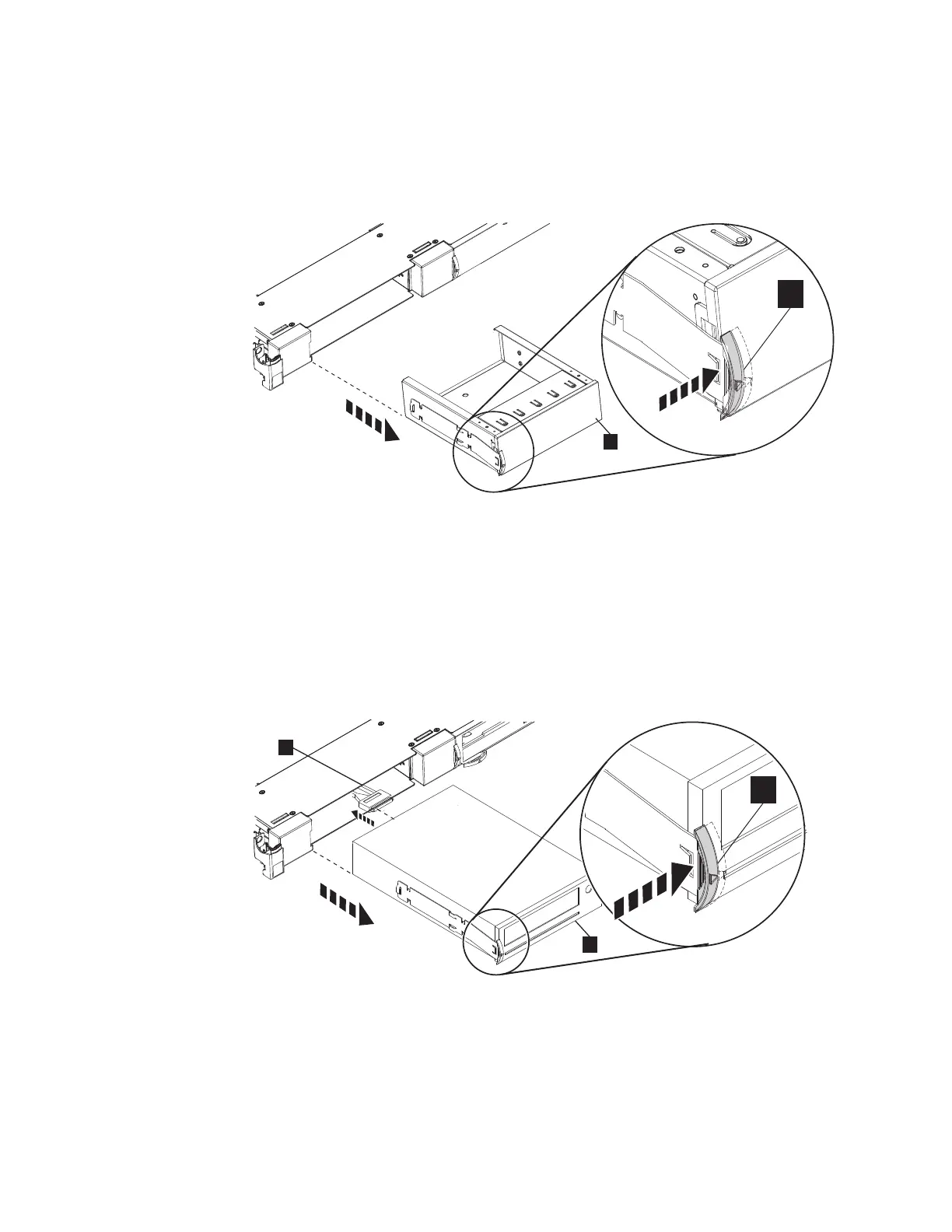

Figure 93. Remove Half-High Bay Blanks
2
ROLSOS831a-0
3
1
Figure 94. Removing a Drive Assembly
168 7226 Storage Device Enclosure Setup, Operator and Service Guide
