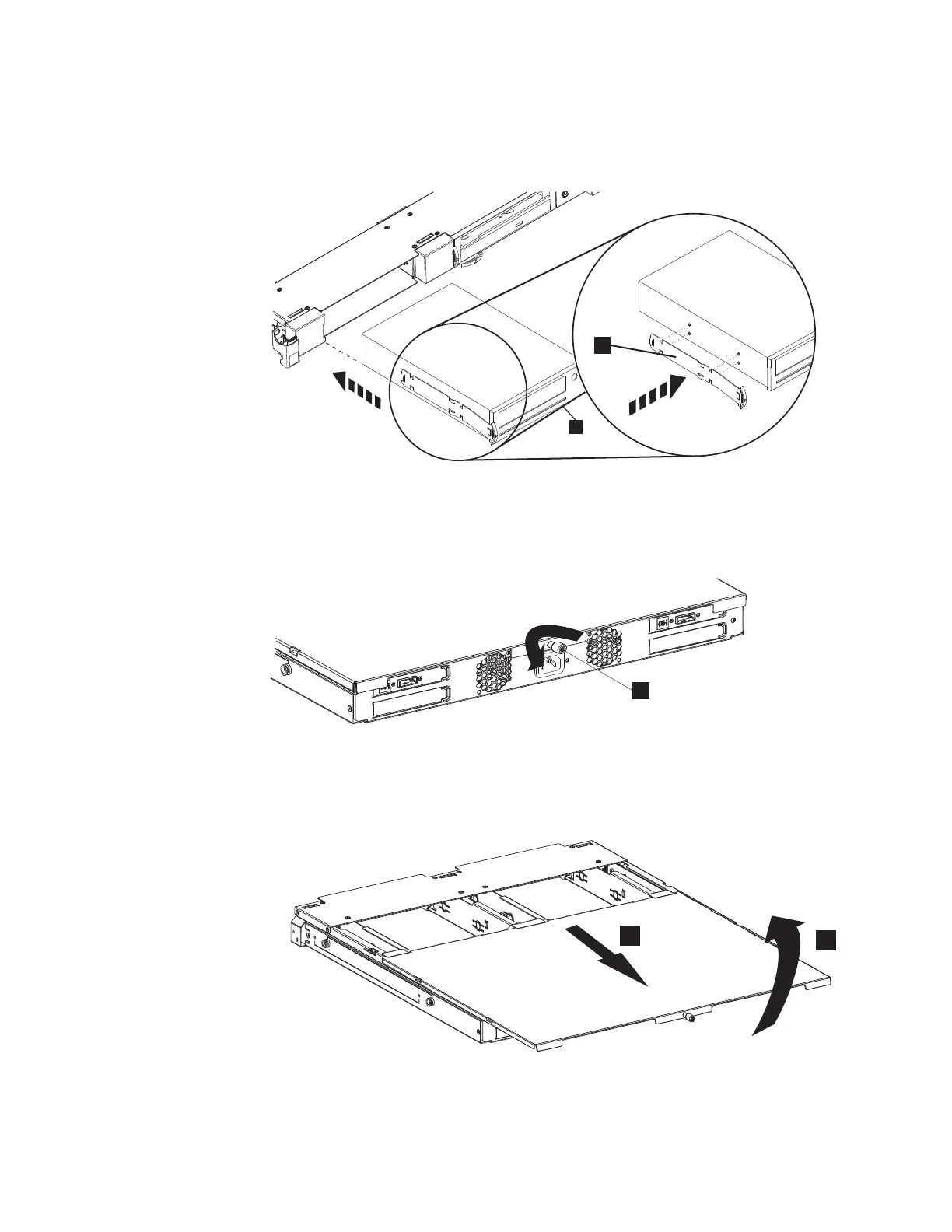

6. Install each device into Enclosure FRU into the its noted location. To install
the drive assemblies, attach the Drive Latch 1 to the drive assembly 2 and
insert both into the drive bay until they click into place.
7. To remove the Top Cover of the Enclosure FRU, loosen the Top Cover Thumb
Screw 1.
8. Slide the Enclosure FRU Top Cover toward the rear of the enclosure 1 and
lift to remove 2.
2
ROLSOS862b-0
3
1
1
Figure 95. Inserting a Drive
1
ROLSOS824a-0
Figure 96. Top Cover Thumb Screw
ROLSOS825-0
2
1
Figure 97. Top Cover
Chapter 11. Installation and Removal Procedures 169
