9. Note the location of each Interface Assembly in the 7226. To remove each
Interface assembly from the 7226, remove the Interface Assembly from the
drive connector 1 and remove the power connector 2.
ROLG063b-0
USB
SAS
3
Fibre Channel

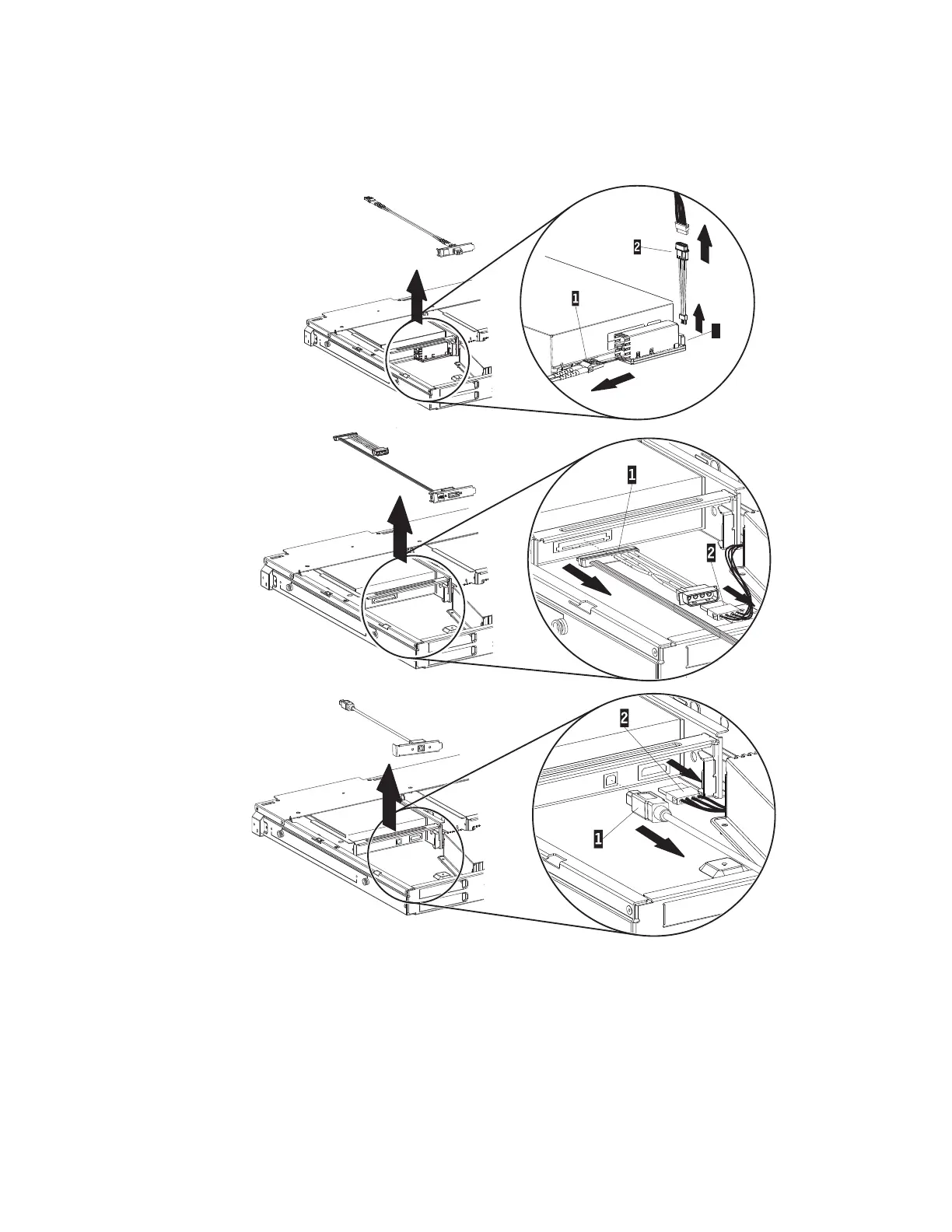

Figure 98. Remove Interface Assembly and Power Cable
170 7226 Storage Device Enclosure Setup, Operator and Service Guide
