10. Note the locations of the Blank Back Plates to be removed from the new
Enclosure FRU. To remove a Blank Back Plate, pull the back plate pin 1 to
release the Blank Back Plate, and remove the Blank Back Plate 2 from the
rear panel slot.
ROLSOS855-0
1
2

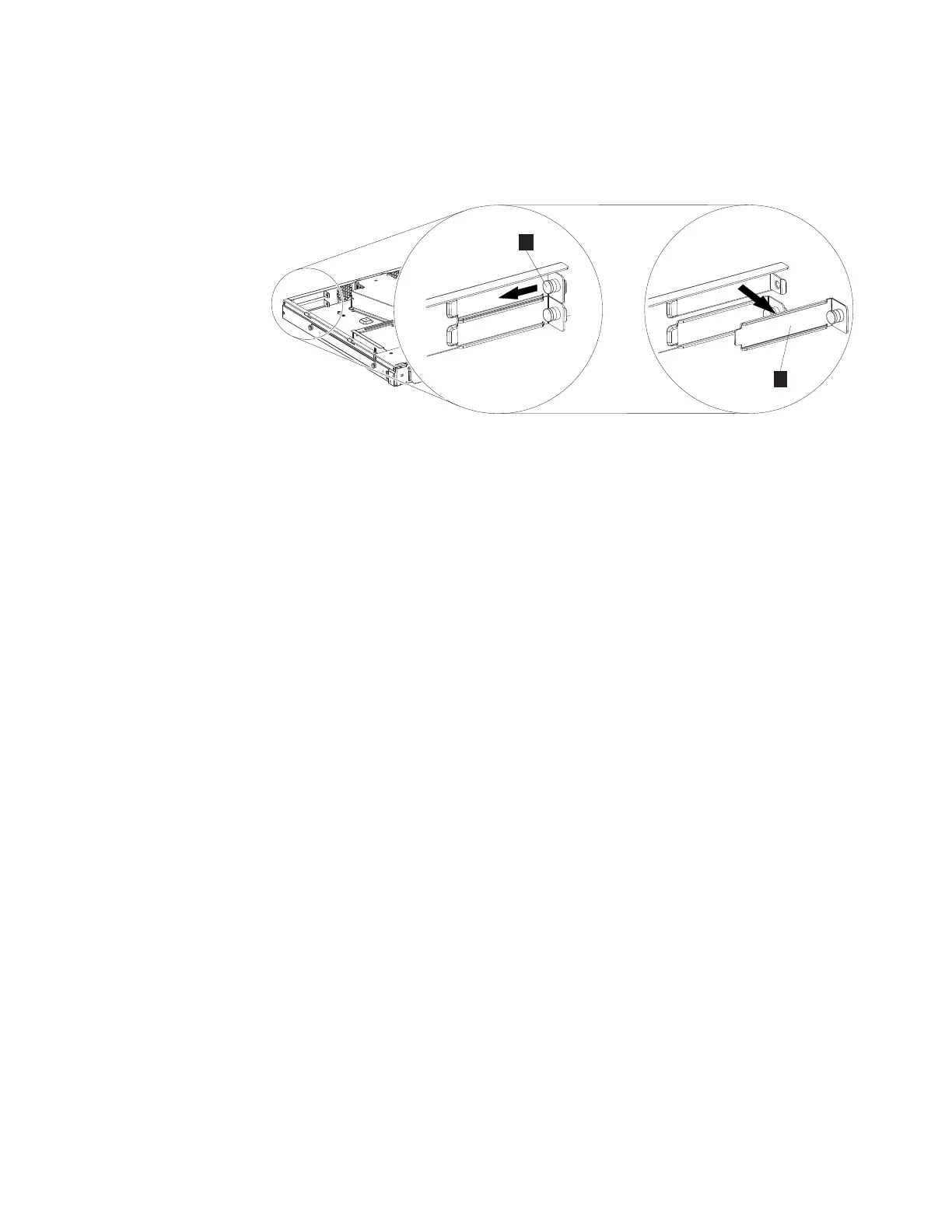

Figure 99. Remove Blank Back Plate
