Opening the 7226 Storage Enclosure for Service
Use the following procedure to extend the 7226 Storage Enclosure from the rack
and remove the top cover.
Note: Only perform this procedure if you are directed here by another service
procedure. Some procedures may be performed without accessing the inside
of the 7226 Storage Enclosure.
1. If they are installed, remove the M6 screws from the front of the Right Slide
Rail 1 and the Left Slide Rail 2 with a flat-head or Phillips screwdriver.
2. Press both rack latches 1 and pull the 7226 Storage Enclosure 2 out from
the rack until the rails click, twice into place.
ROLSOS821-0

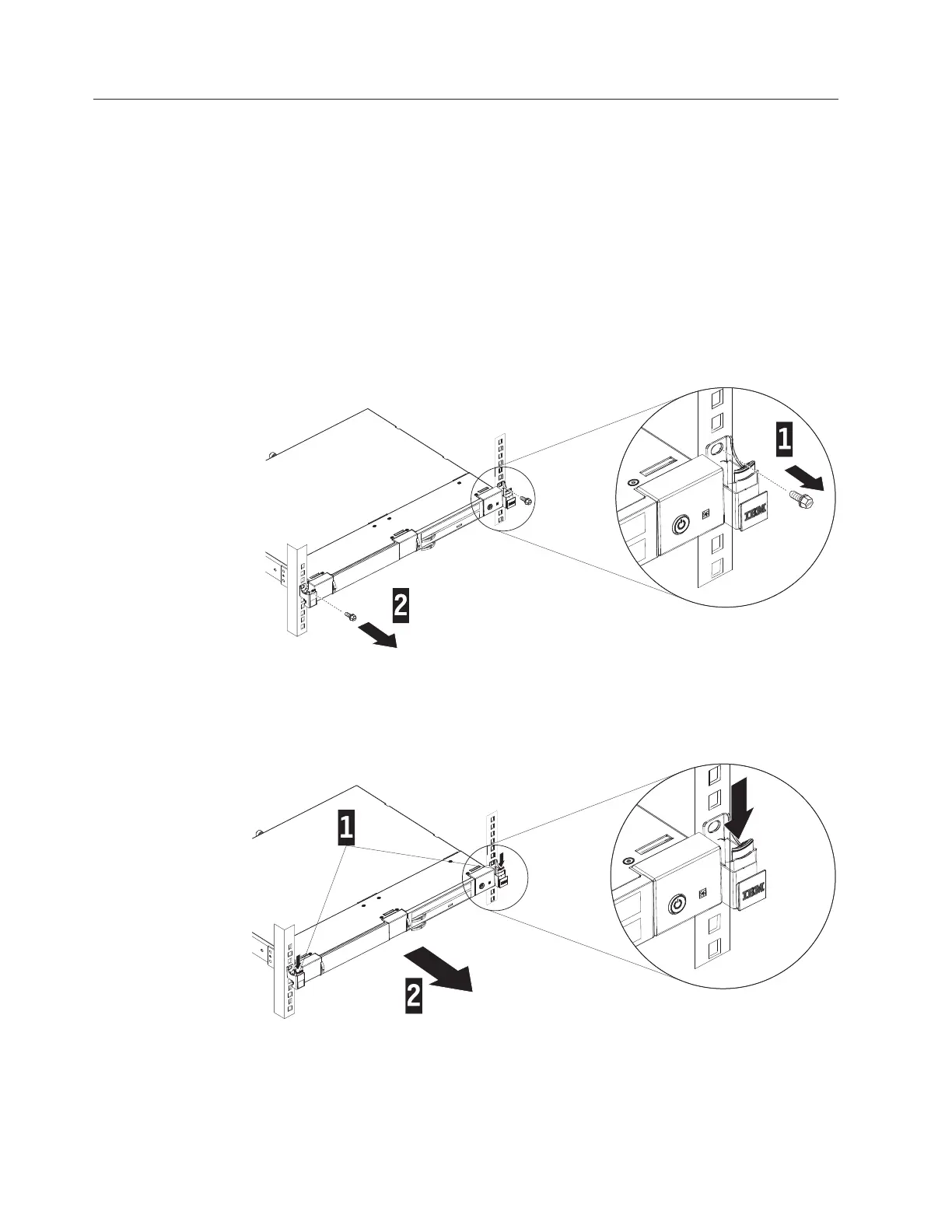

Figure 103. Remove M6 Screws from the Slide Rails
ROLSOS812-0
Figure 104. Release latches and 7226 Storage Enclosure
174 7226 Storage Device Enclosure Setup, Operator and Service Guide
