3. Pull the 7226 Storage Enclosure out from the rack until the slide rails are fully
extended and click into place.
Note: Do not remove the 7226 Storage Enclosure from the slide rails.
4. Loosen the Top Cover Thumb Screw 1.

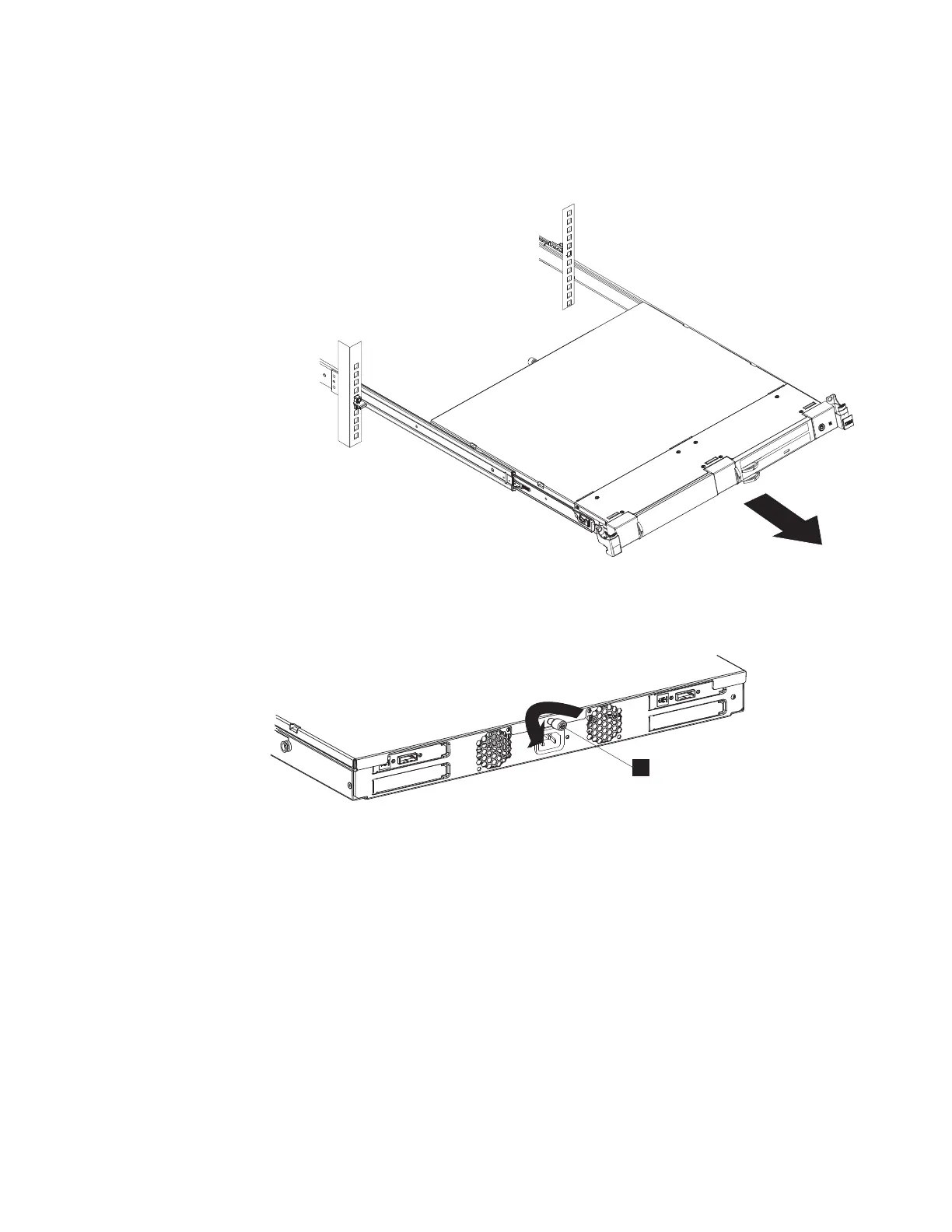

ROLSOS822b-0
Figure 105. Pull the 7226 Storage Enclosure out from the Rack
1
ROLSOS824a-0
Figure 106. Top Cover Thumb Screw
Chapter 11. Installation and Removal Procedures 175
