Completing the 7226 Storage Enclosure Service Procedure
Use the following procedure to install the top cover and insert the 7226 Storage
Enclosure into the rack.

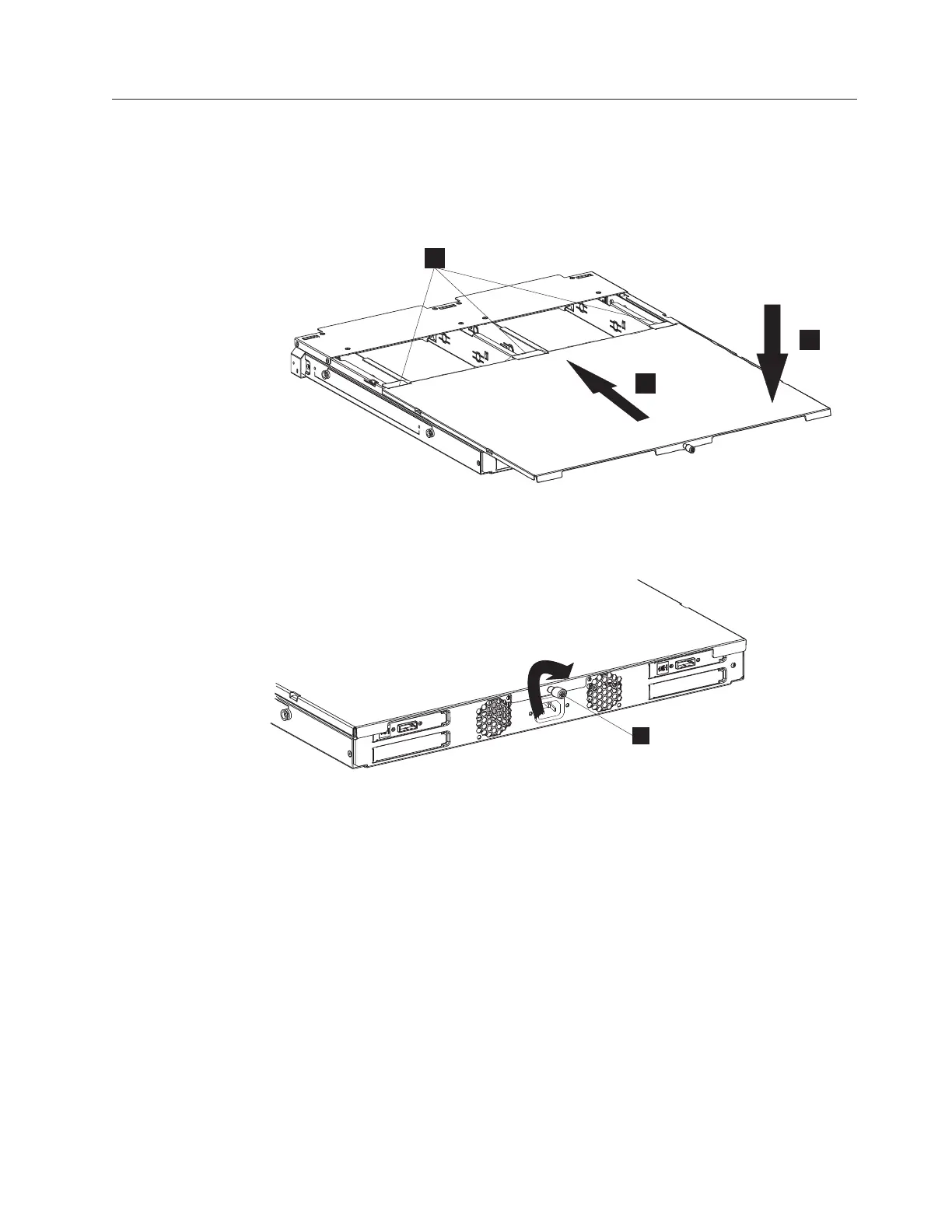

1. Place the Top Cover on the 7226 Storage Enclosure 1. Slide it forward 2
until the tabs are fully engaged 3.
2. Tighten the Top Cover Thumbscrew 1.
ROLSOS826-0
3
1
2
Figure 108. Top Cover
1
ROLSOS827-0
Figure 109. Top Cover Thumb Screw
Chapter 11. Installation and Removal Procedures 177
