3. Lift the blue release latches 1 on the slide rails and push the 7226 Storage
Enclosure 2 all the way into the rack until it clicks into place.
4. The M6 screws may be installed into the front of the Right Slide Rail 1 and
the Left Slide Rail 2 using a flat-head or Phillips screwdriver.
Note: This step is optional. The screws are only necessary for shipping or in
vibration-prone areas.
ROLSOS805a-0

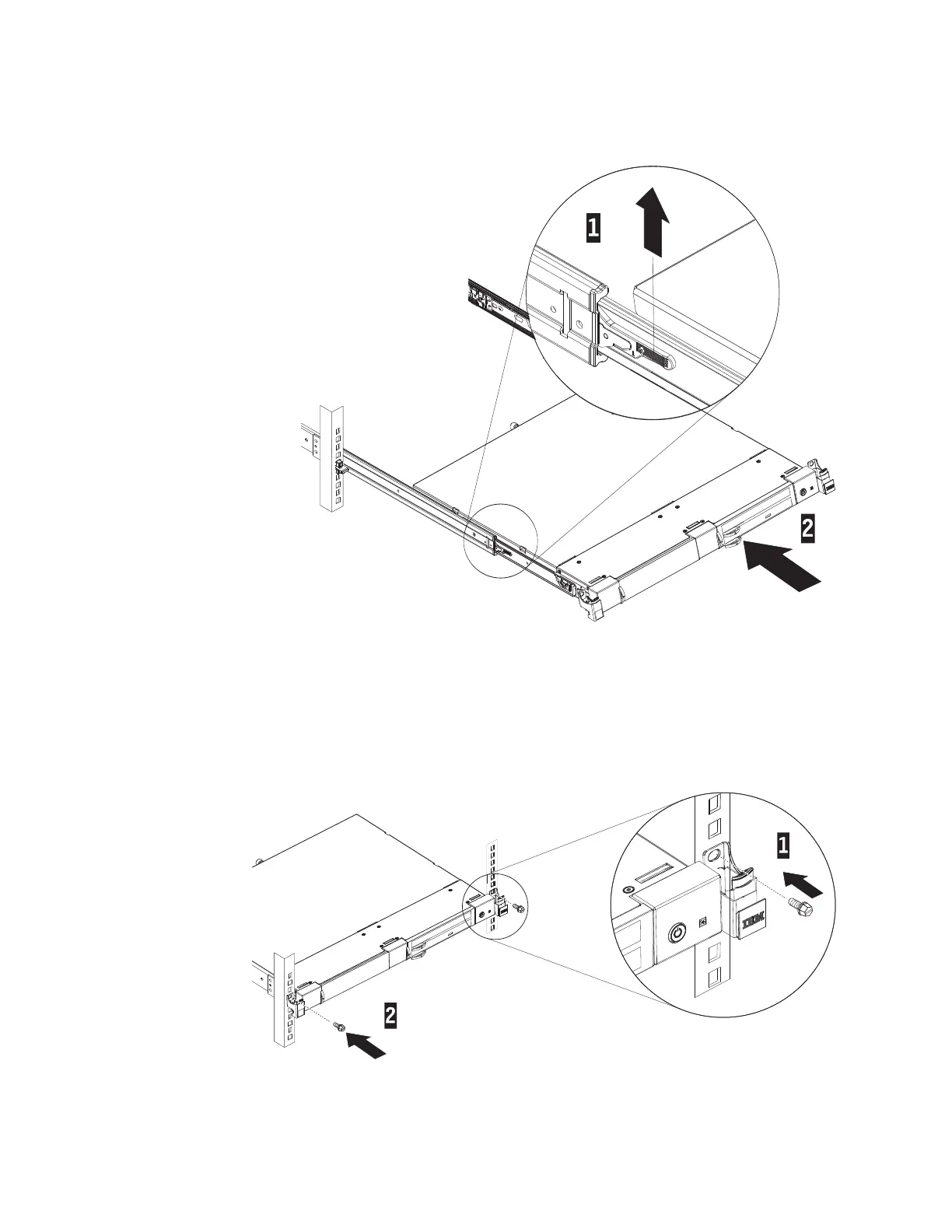

Figure 110. Release latches and 7226 Storage Enclosure
ROLSOS820-0
Figure 111. M6 Screws into the Slide Rails
178 7226 Storage Device Enclosure Setup, Operator and Service Guide
