10. Attach the connectors 1 to the Slim Tray assembly. Attach the Drive Latch
2 to the Slim Tray Assembly 3 and insert both into the drive bay until
they click into place.
11. Determine the location to install the DVD drive. Attach the Slim Drive Latch
1 to the DVD Drive 2 and insert both into the slim drive bay until they
click into place. Repeat this step with the second DVD drive or the Slim Blank
Front Cover.
Note: The connector on the back of the DVD drive must attach securely to the
SATA/SAS re-driver card or SATA/USB converter card.
12. Attach the power cord and other cables to the rear of the enclosure.
13. Power on the 7226 storage enclosure.
14. Refer to your system manuals to verify installation.
3
ROLSOS844a-0
1
2

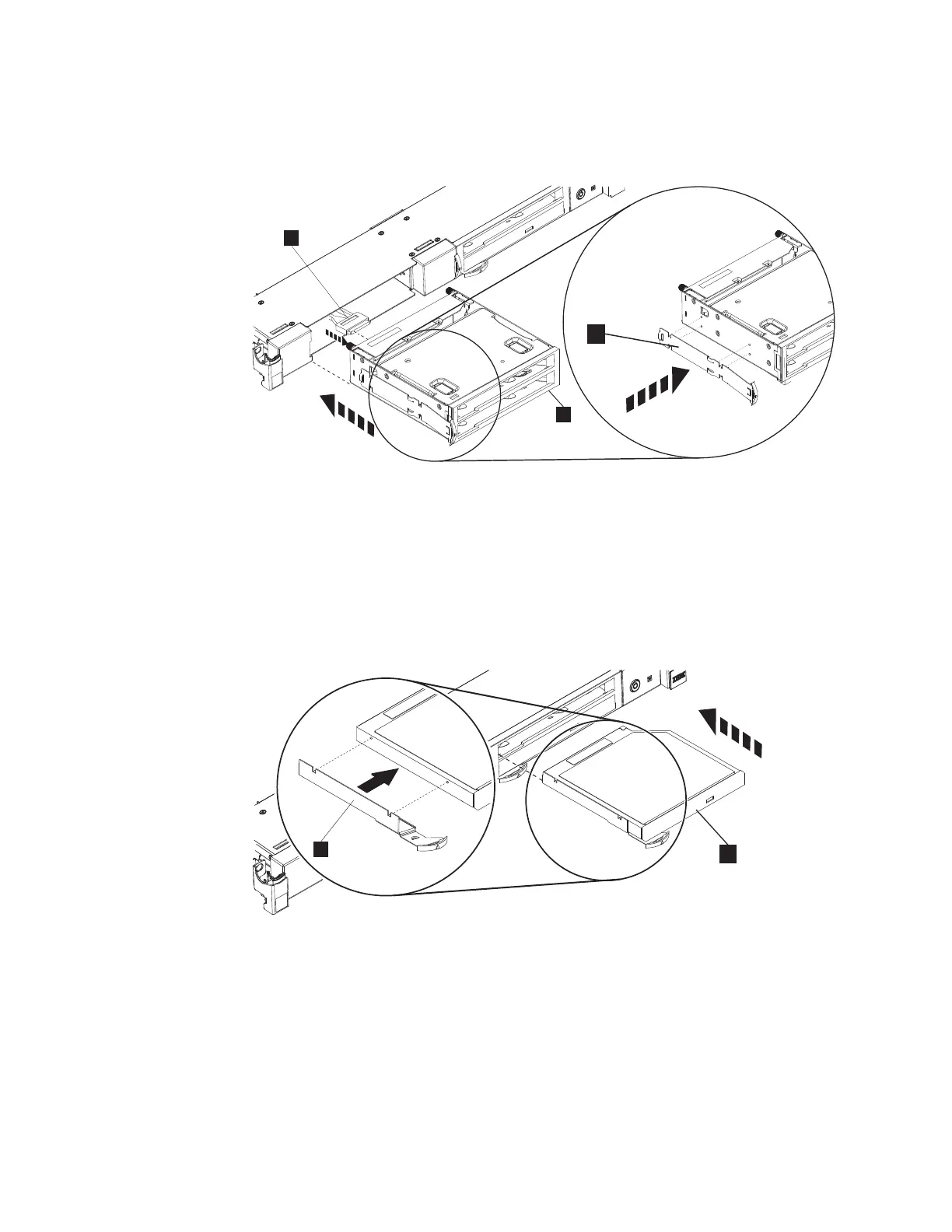

Figure 90. Install Slim Tray Assembly
2
ROLSOS834b-0
1
Figure 91. Install DVD Drive
166 7226 Storage Device Enclosure Setup, Operator and Service Guide
