4. Lift the blue release latches 1 on the slide rails and push the 7226 Storage
Enclosure 2 all the way into the rack until it clicks into place.
5.
Note: This step is optional. The screws are only necessary for shipping or in
vibration-prone areas.
The M6 screws may be inserted into the front of the Right Slide Rail 1 and
the Left Slide Rail 2 using a flat-head or Phillips screwdriver.
ROLSOS805a-0

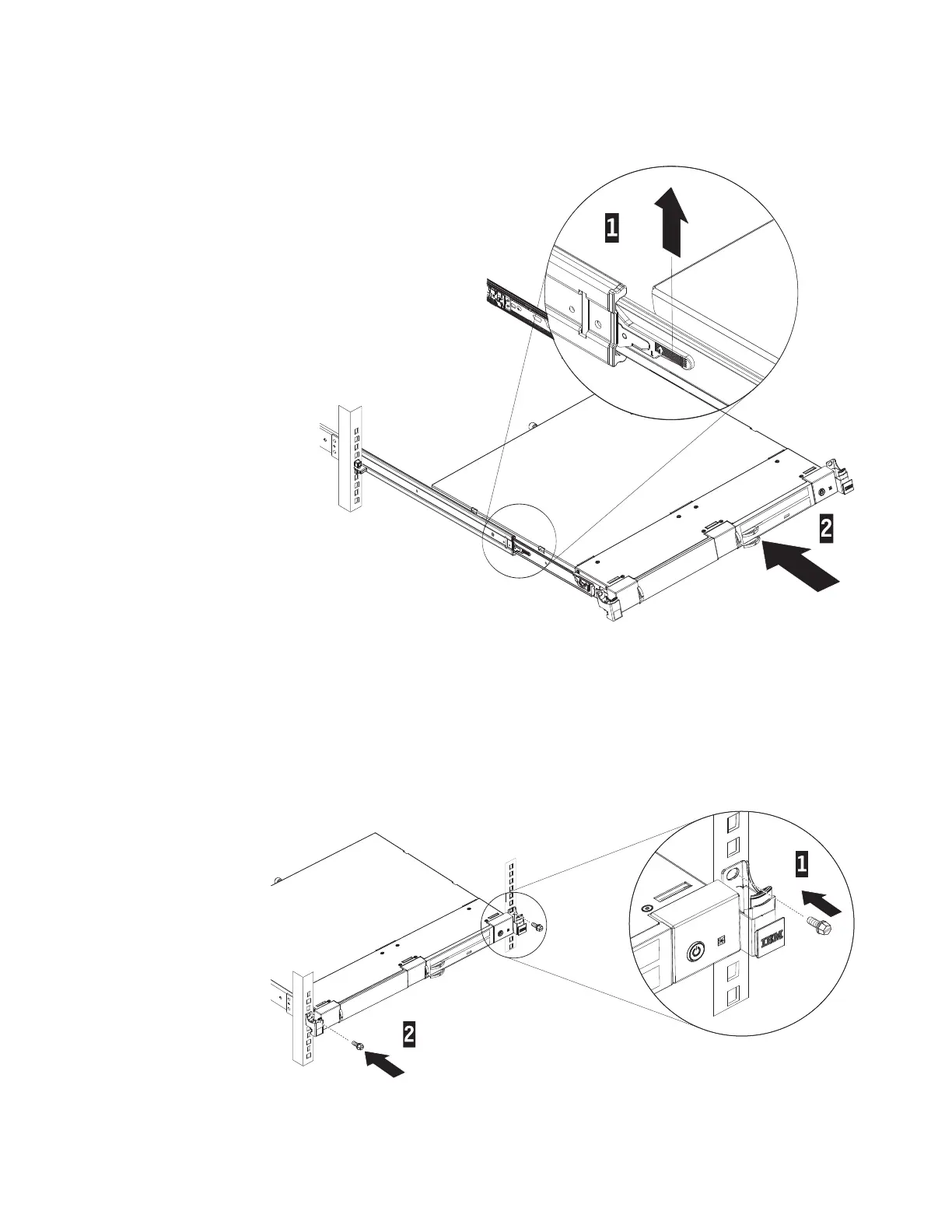

Figure 8. Release latches and 7226 Storage Enclosure
ROLSOS820-0
Figure 9. M6 Screws into the Slide Rails
Chapter 2. Installing the 7226 Storage Enclosure into a Rack 17
