6. Attach the connectors 1 to the drive assembly. Attach the Drive Latch 2 to
the Drive 3 and insert both into the drive bay until they click into place.
7. Attach the power cord and other cables to the rear of the enclosure.
8. Power on the 7226 storage enclosure.
9. Refer to your system manuals to verify installation.
3
ROLSOS832-0
1
2

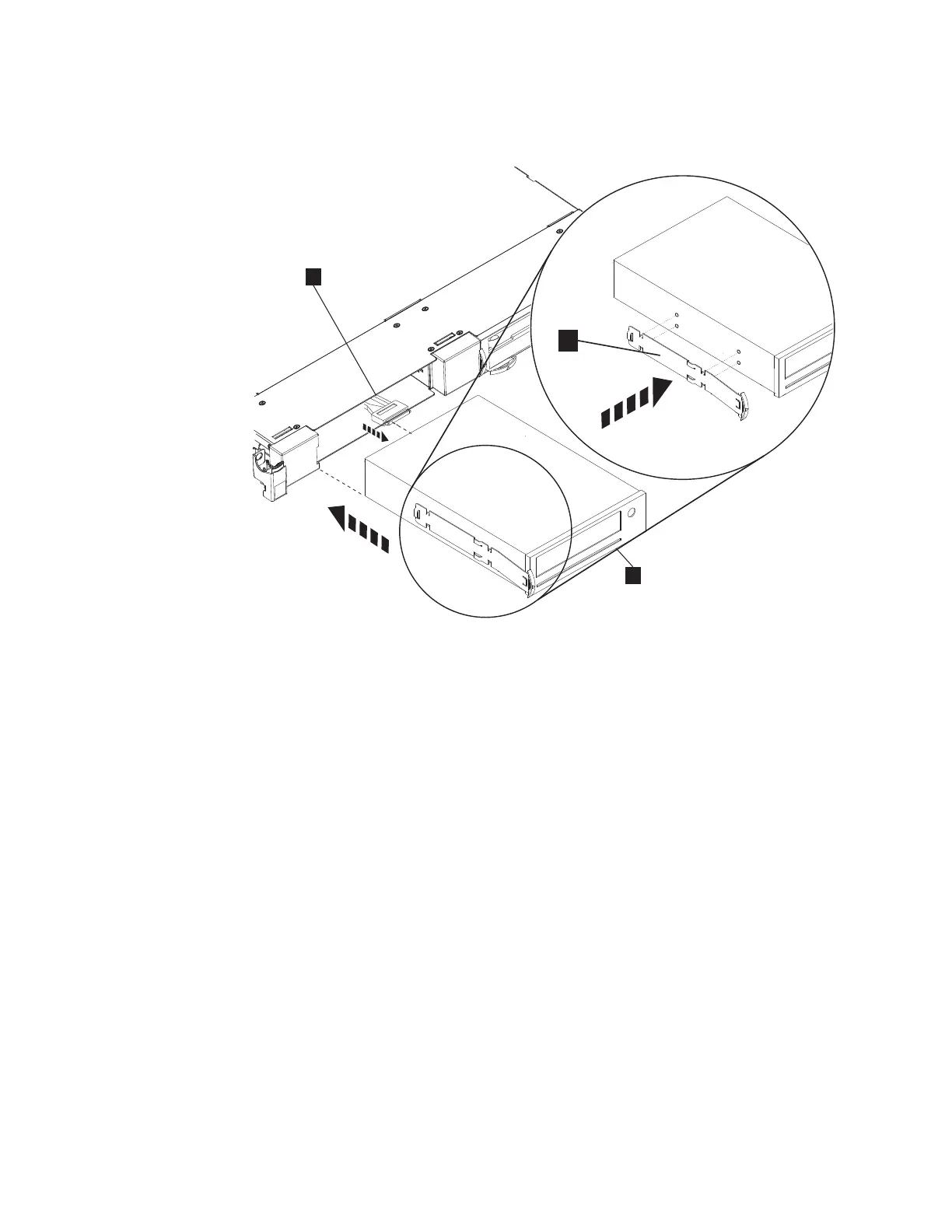

Figure 73. Inserting a Drive
152 7226 Storage Device Enclosure Setup, Operator and Service Guide
