4. Pull the slide rail forward and insert the two pins on the front of the rail into

the two lower holes in the U on the front of the rack. Drop the rail into place

1 until it clicks into place. Push the front latch 2 in all the way.

5. Repeat steps 1 through 3 to install the other rail into the rack. Make sure that

each front latch is fully seated.

ROLSOS803-0

Rack Front

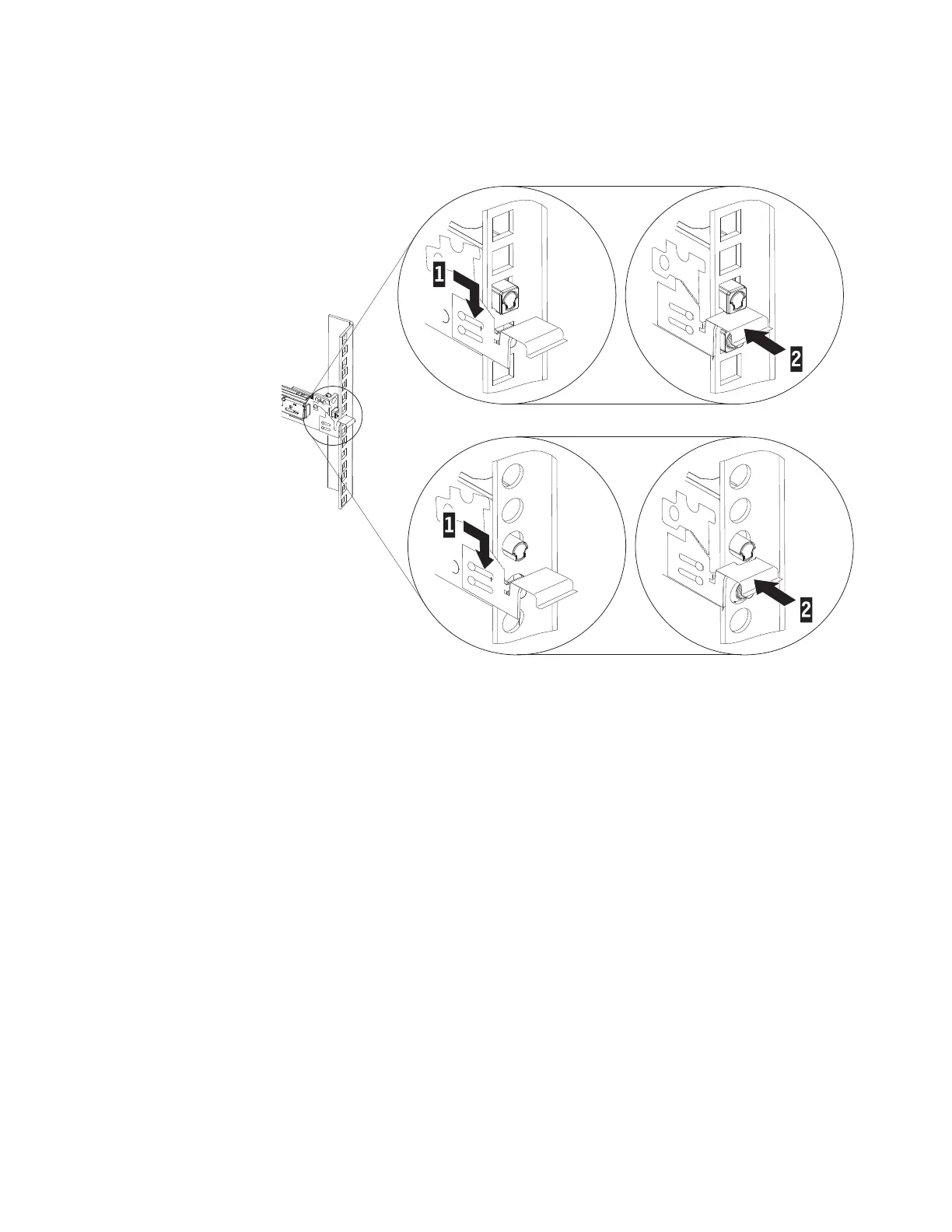

Figure 6. Rack front rail and pins

Chapter 2. Installing the 7226 Storage Enclosure into a Rack 15
