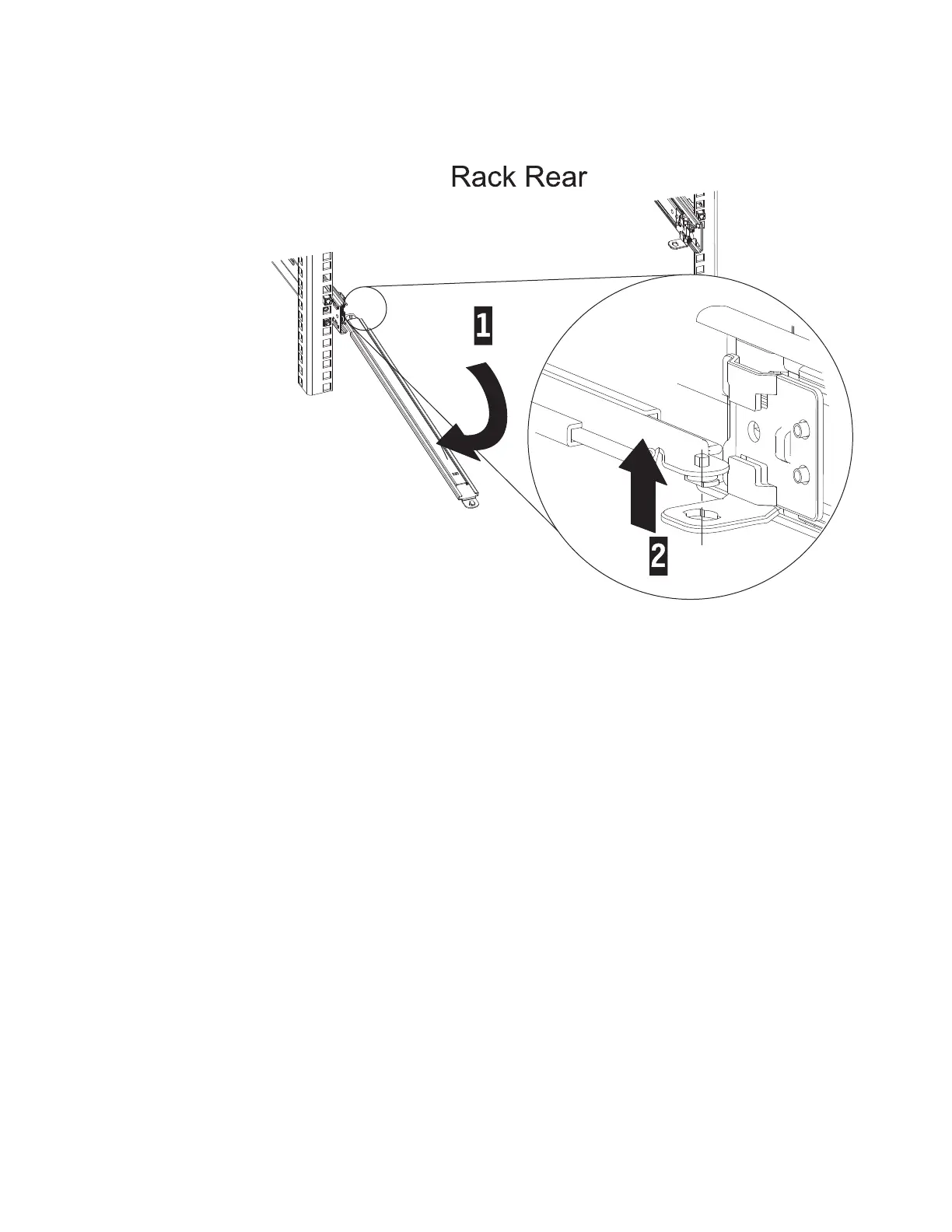

7. Swing the support arm 2 away from the rack and remove it from the slide
rail.
ROLSOS819a-0
UP
Figure 24. Support Arm
Chapter 2. Installing the 7226 Storage Enclosure into a Rack 27
