12.3.1 Min/max values and separation

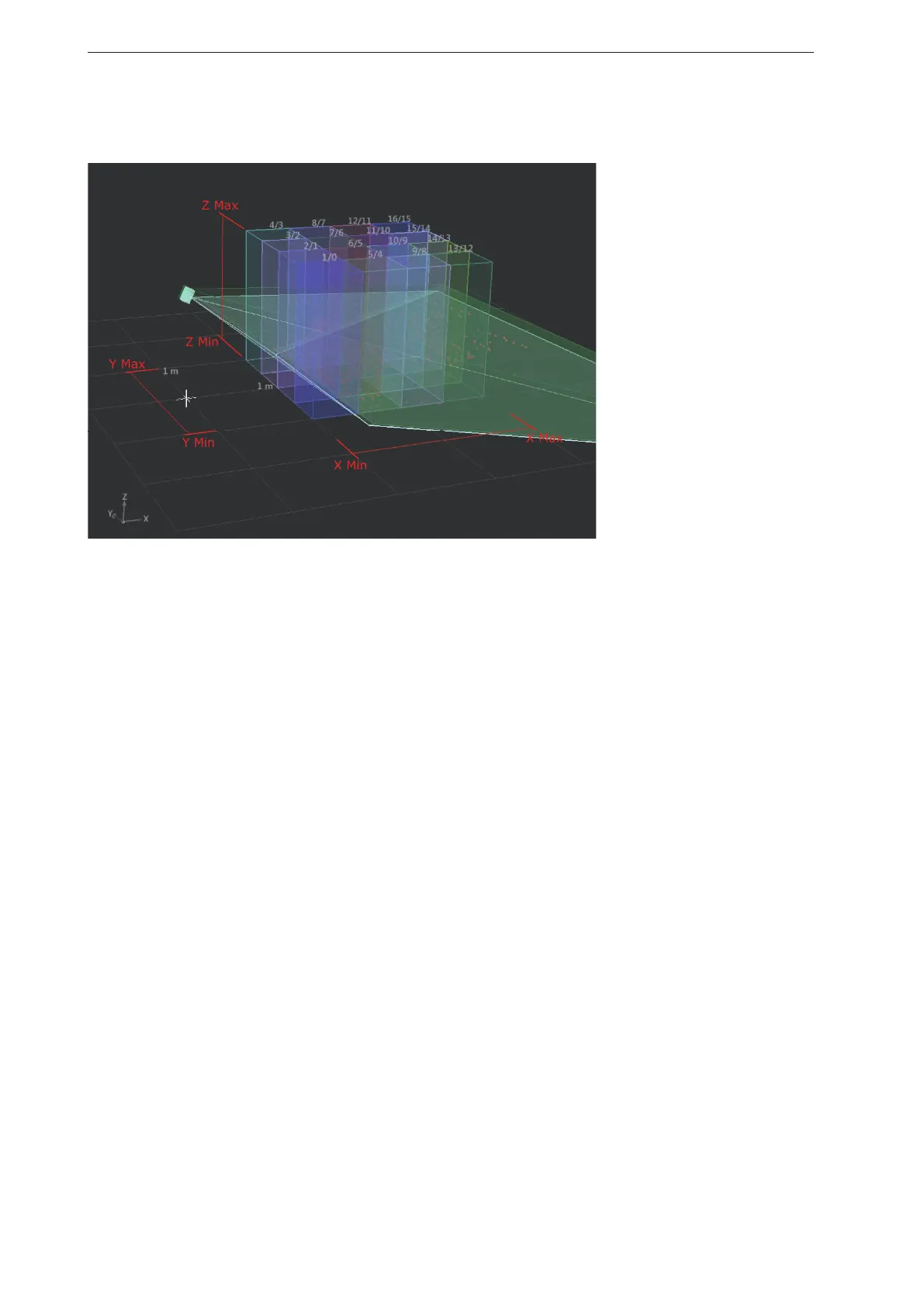

The following figure shows the effect of the settings on the ROI grid.
The "min/max values" for the x, y and z axis indicate the position of the grid in the world coordinate
system. The three axes are marked in red in the figure above. The origin of the coordinate system is
marked with a white cross. The grid of the level has a division of 1 m.
The x, y, and z division separates the grid into ROIs.
