ifm Vision Assistant O3M
84

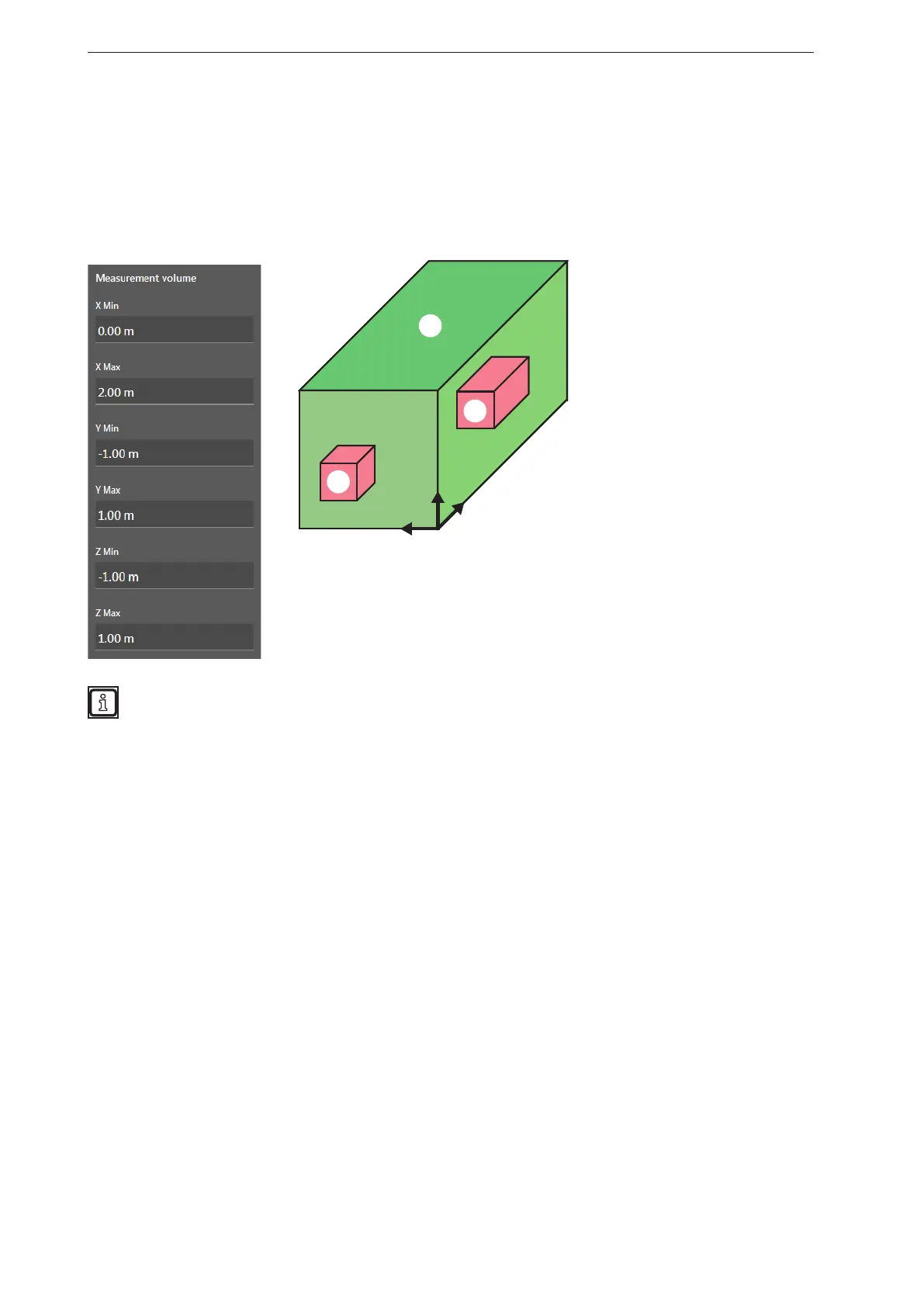

10.11 Measuring range
The measuring range ① isolates the data which is to be used for further calculations. If the measuring
range ① is set, only the data within the min/max values are used for further calculation. The data outside
the min/max values is abandoned and is available for further functions.
Setting the measuring range
► Enter min/max values for the coordinate axes.
z
y
x
①
②
②
The measuring range can be displayed and hidden in the monitoring window
(→ „6 Monitoring window“).
