15.4.3 Example for the "Input value of index" module

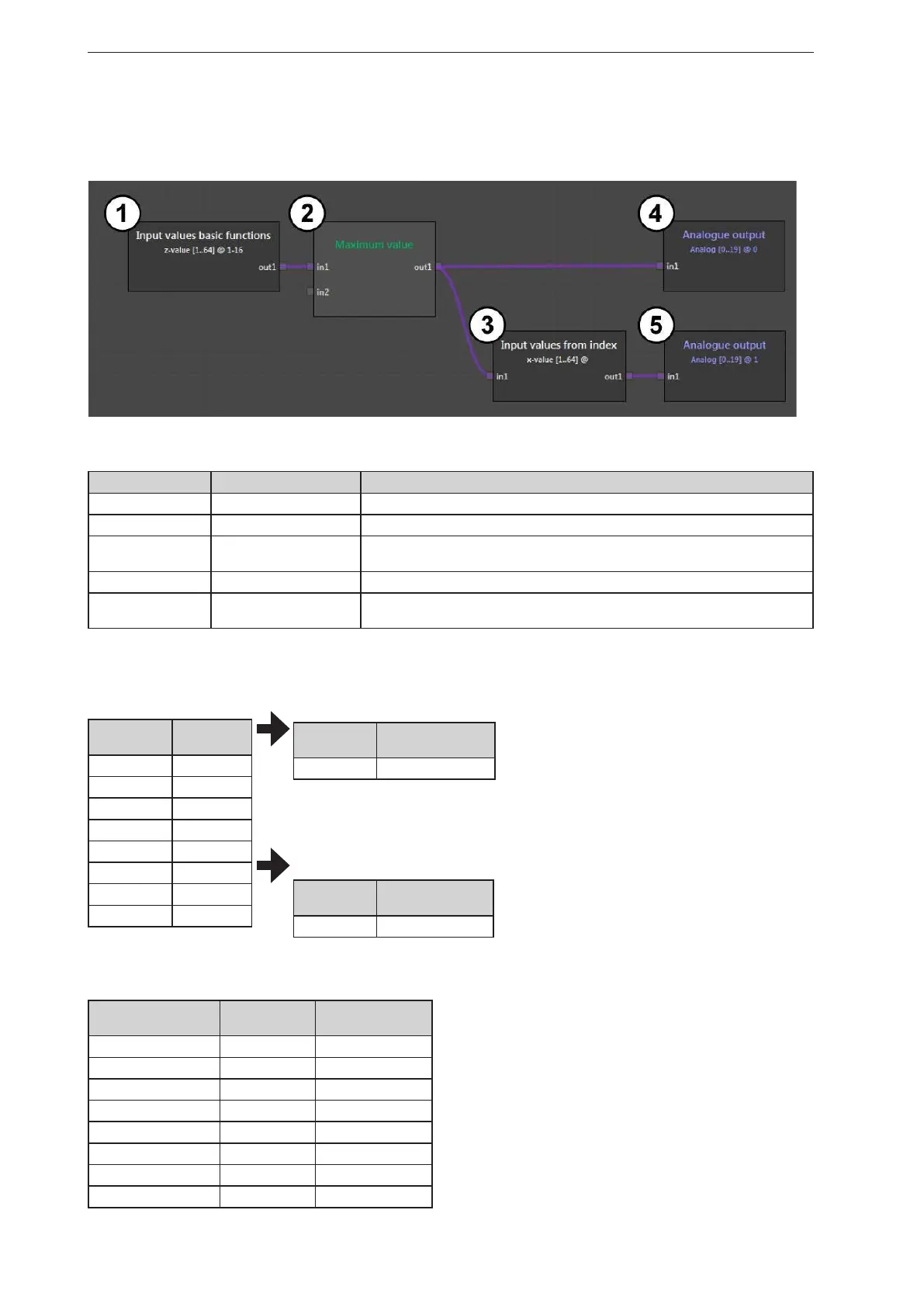

In the logic shown, filtering is applied according to the maximum z-value (height) and the corresponding
x-value (distance) is provided.
Description of the modules used in the example:
Module number Module Description
1 Basic function The z-values are filtered out of ROI groups 1-16.
2 Maximum value The maximum value is filtered out of the 16 z-values.
3 Input value of index
Based on the index of the maximum z-value, the corresponding x-value is
filtered out.
4 Analogue output The maximum z-value is returned via analogue output 0.
5 Analogue output
The x-value associated with the maximum z-value is provided via analogue
output 1.
Table of
input values:
ROI group
(index)
z-value
(height)
1 0.05 m
2 -0.02 m
3 0.25 m
4 -0.18 m
5 0.07 m
6 0.02 m
7 -0.09 m
8 0.16 m
Result of the "Maximum value"
module on analogue output 0:
ROI group
(index)
z-value (height)
14 1.97 m
Result of the "Input value of
index" module on analogue
output 1:
ROI group
(index)
x-value (distance)
14 5.38 m
Table of input values:
ROI group (index)
z-value
(height)
x-value (distance)
1 0.05 m 1.31 m
2 -0.02 m 2.43 m
3 1.12 m 0.91 m
4 1.51 m 7.69 m
5 0.07 m 3.52 m
6 0.02 m 5.40 m
7 1.29 m 2.37 m
8 1.79 m 4.14 m
