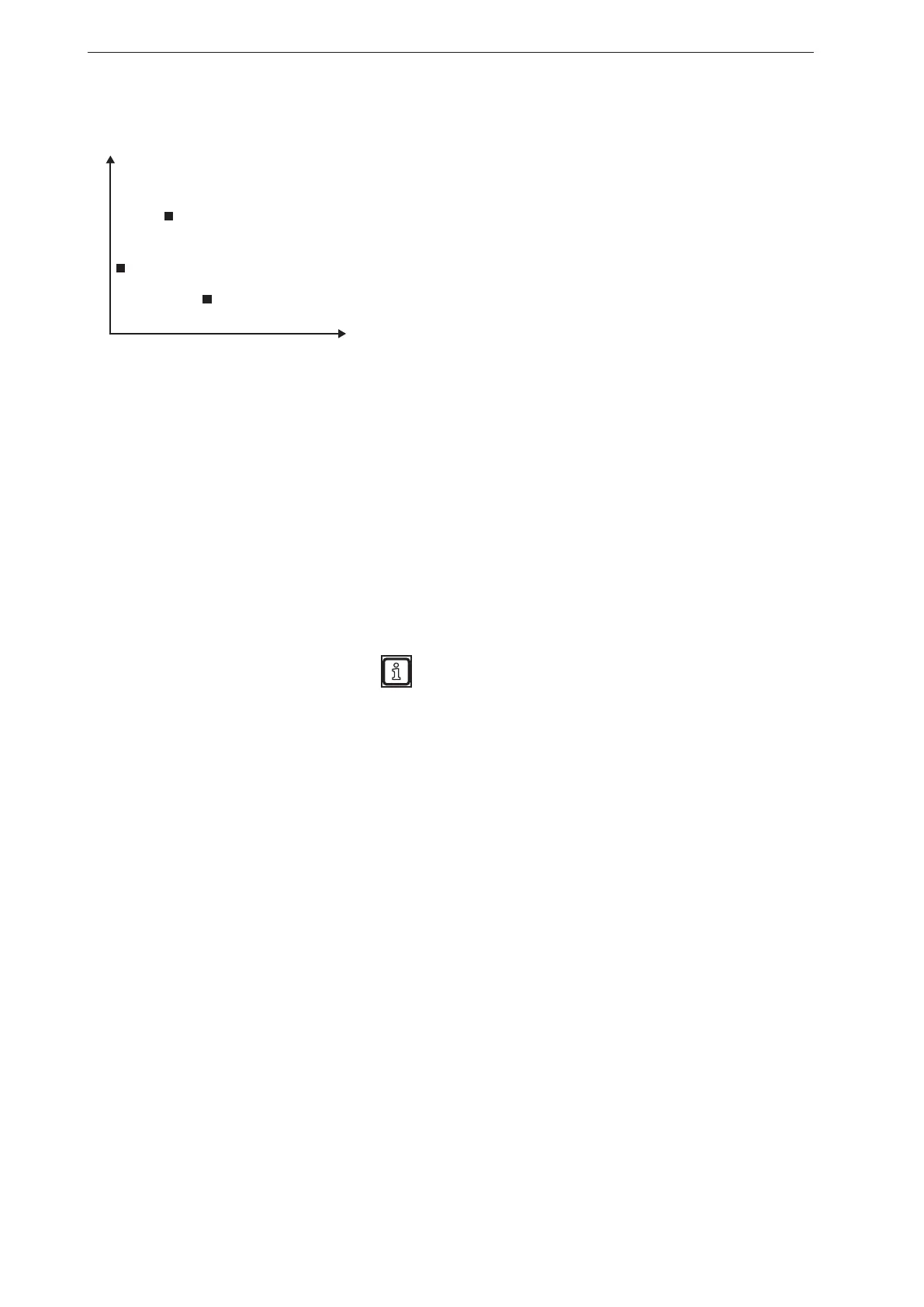

Example:
z
x
(x, y, z, A = 1)
(x, y, z, A = 5)
(x, y, z, A = 2)
● Set result type: "min"
● Set output value: "absolute min"
● Set reference value for min/max:"x"
The pixel (x
1
, y
1
, z
1
, A
1
) is provided.
● Set result type: "min"
● Set output value: "absolute min"
● Set reference value for min/max: "z"
The pixel (x
2
, y
2
, z
2
, A
2
) is provided.
● Set result type: "min"
● Set output value: "absolute min"
● Set reference value for min/max:"amplitude"
The pixel (x
3
, y
3
, z
3
, A
3
) is provided.
● Set result type: "min"
● Set output value: "absolute min"
● Set reference value for min/max: "independent"
The value (x
1
, y?, z
2
, A
3
) is provided.
The y value is not shown in the diagram.
