ifm Vision Assistant O3M
166

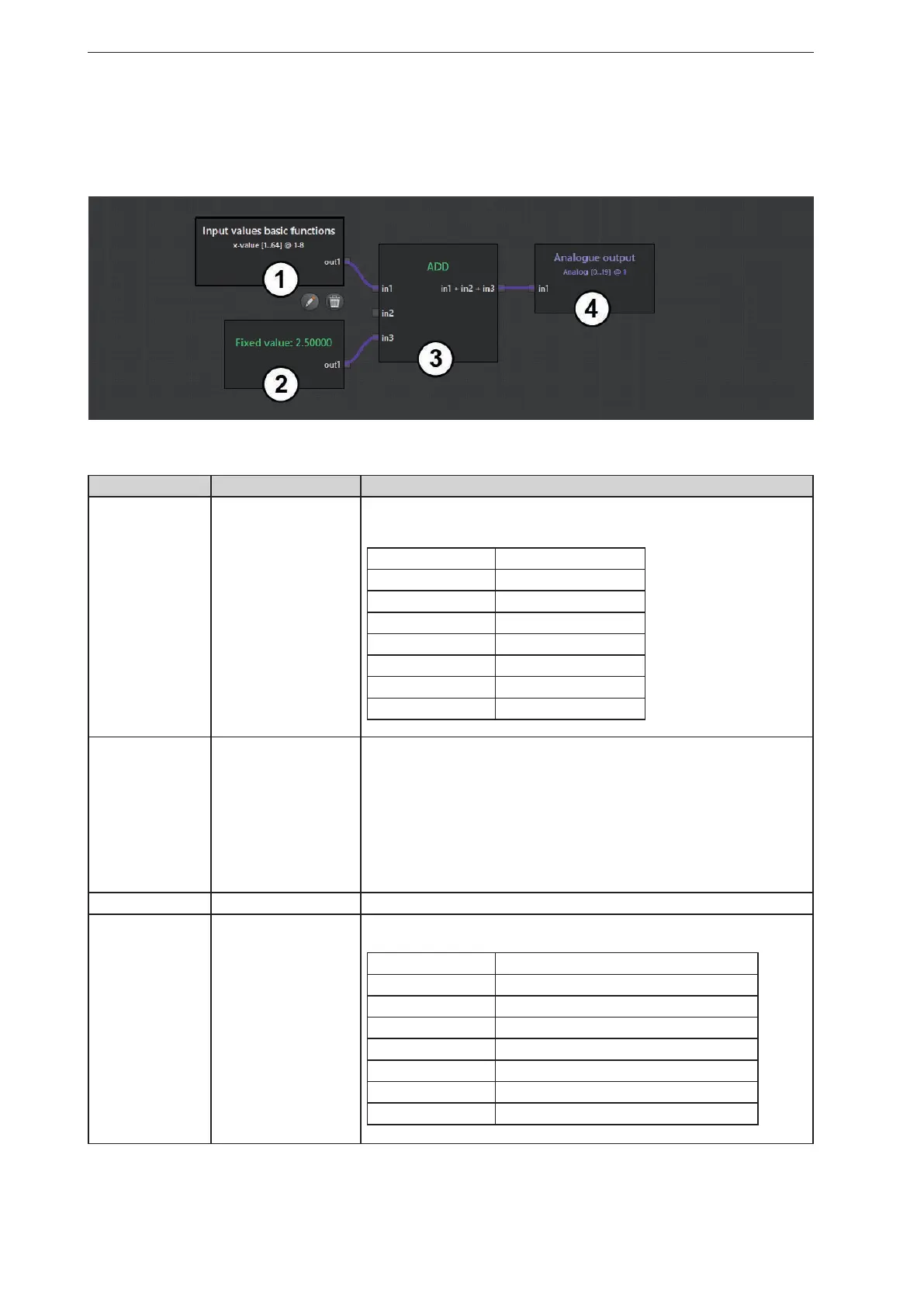

Addition of a vector and a single value
If there is a vector at one input and a single value at the other input, each value of the vector is added to
the single value. A vector is then sent to the output. The size of the vector at the output corresponds to
size of the vector at the input.
Description of the modules used in the example:
Module number Module Description
1 Basic function
The x-values are filtered out of ROI groups 1-8. The ROI groups contain the
following x-values:
1 3.25 m
2 3.32 m
3 3.19 m
4 3.37 m
5 5.07 m
6 4.98 m
7 5.12 m
8 5.02 m
2 Fixed value The fixed value "2.5" is defined.
3 ADD The x-values of the vector are added to the fixed value.
4 Analogue output
The following vector is provided at analogue output 1:
1 (ROI 1 (3.25 m)) + 2.5 m = 5.75 m
2 (ROI 2 (3.32 m)) + 2.5 m = 5.82 m
3 (ROI 3 (3.19 m)) + 2.5 m = 5.69 m
4 (ROI 4 (3.37 m)) + 2.5 m = 5.87 m
5 (ROI 5 (5.07 m)) + 2.5 m = 7.57 m
6 (ROI 6 (4.98 m)) + 2.5 m = 7.48 m
7 (ROI 7 (5.12 m)) + 2.5 m = 7.62 m
8 (ROI 8 (5.02 m)) + 2.5 m = 7.52 m
