If the fuse has not blown, but the actuator does not move, it could be a problem with the micro switches in
the actuator. Before removing the actuator, check by powering the actuator motor directly.
23
Connect the two wires A1 - A2 to the connector G, connecting the terminal of the red wire A1 to the plug of
the yellow wire G2 in position 2 of the connector G and the terminal of the black wire A2 to the plug of the
black and brown wires G1 in position 1 of the connector G.
24
If the actuator rod starts to move (stop the first test before the rod goes beyond the permitted travel), this
means the motor is functioning correctly and the problem could be an internal micro switch. Remove the
actuator and check the internal micro switches as explained in paragraph B2.3 - B2.4.
25
If the rod does not move, replace the actuator with a new one, see paragraph B2.3.
A1
A2
G
G1
G2

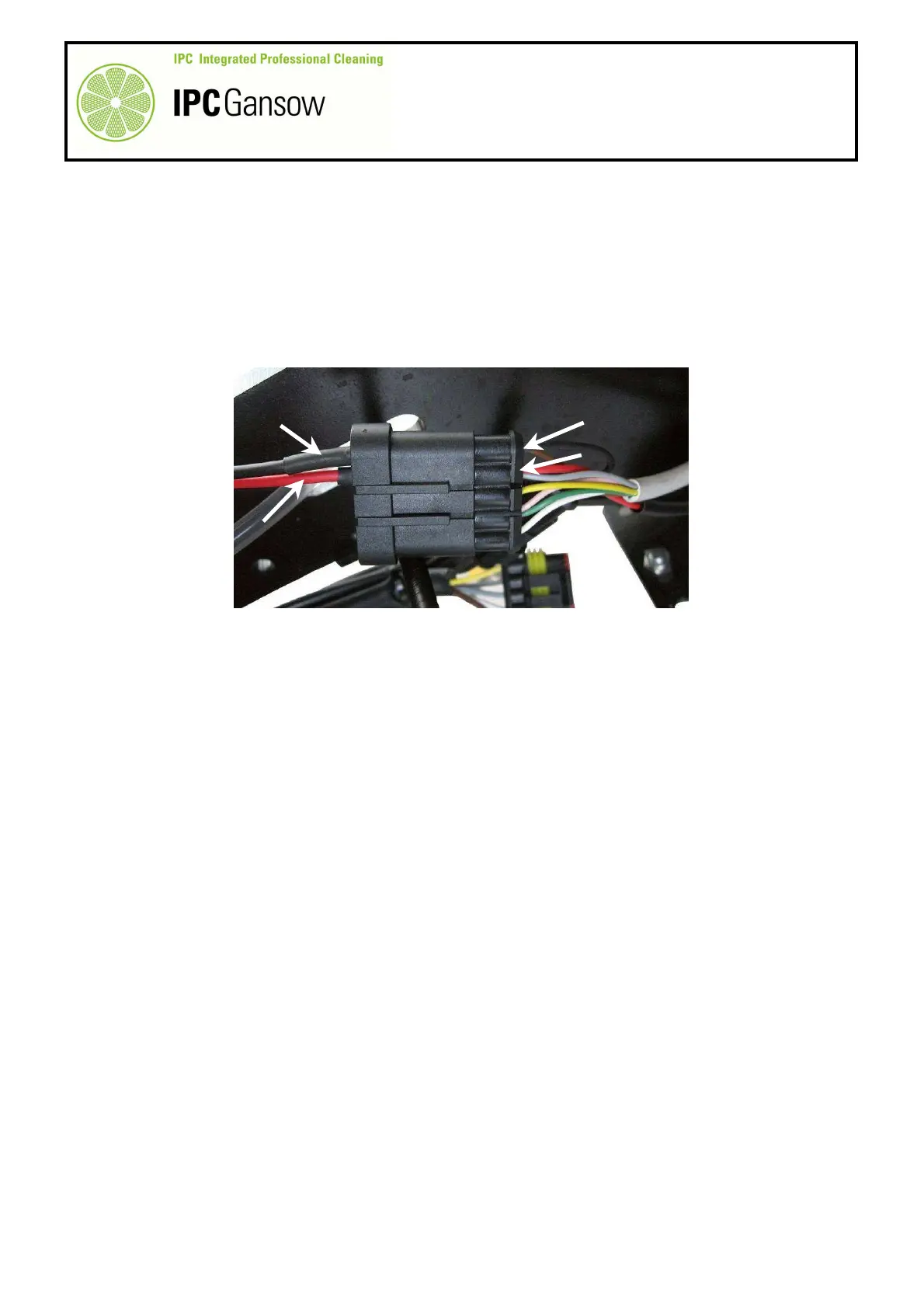

PHOTO 194
