PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
89/195
15

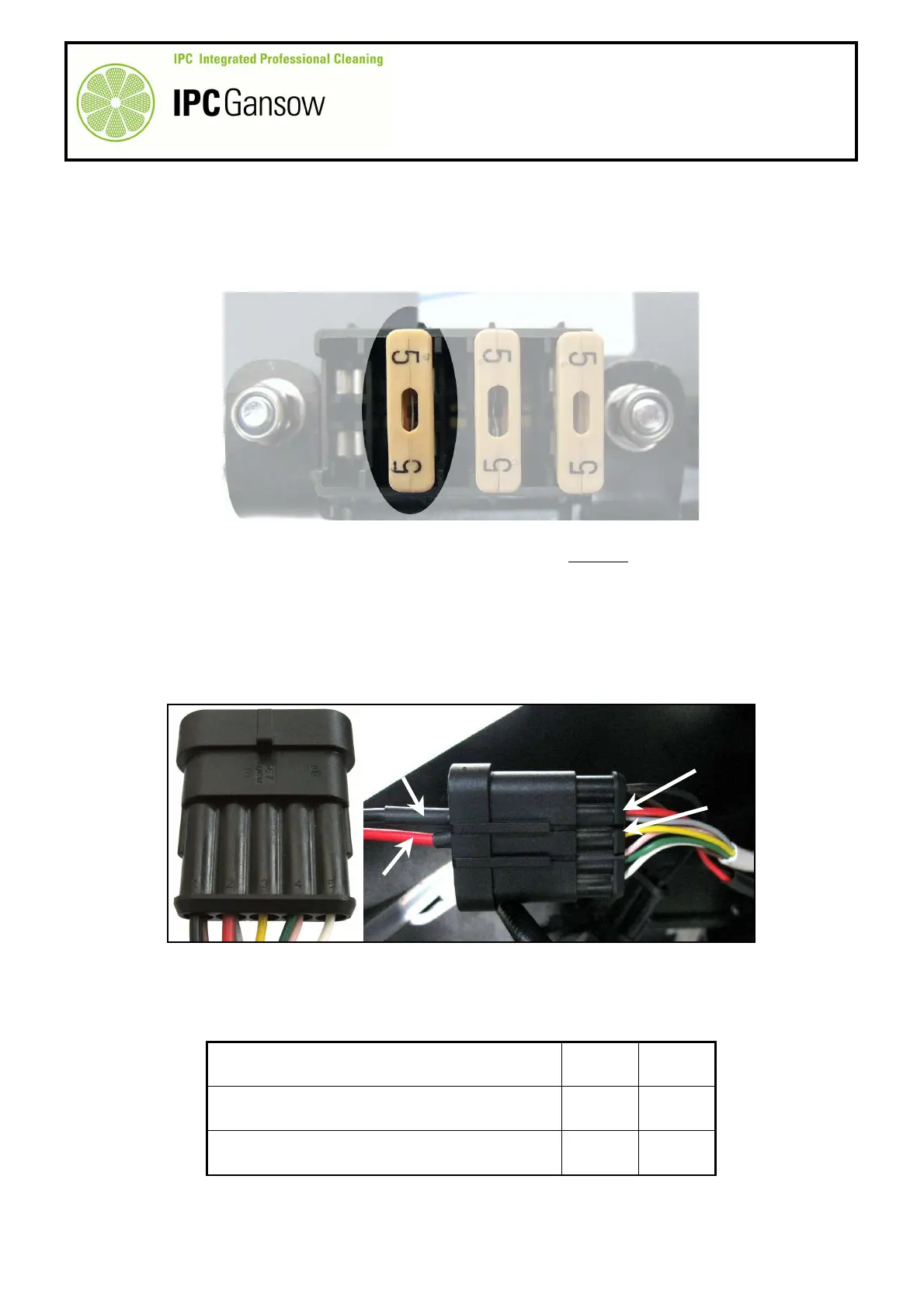

If the actuator does not move, check the fuse M.
16
If the fuse M is burnt out, disconnect the actuator from the batteries, replace the fuse with a new one and
check actuator operation again.
17
If the fuse burns out at the beginning of the test, the actuator motor might be in short circuit. Disassemble the
actuator as explained in the following paragraph.
18
If the actuator rod moves, lowering the squeegee, this means that it is functioning correctly. Proceed to test it
during raising.
19
Connect the two wires A1 - A2 to the connector G, connecting the terminal of the red wire A1 to the plug of
the yellow wire G3 in position 3 of the connector G and the terminal of the black wire A2 to the plug of the
red and grey wires G2 in position 2 of the connector G.
20
If the actuator rod moves again, raising the squeegee, this means that the actuator is functioning correctly.
21
Compare the actuator draw values measured in raising and lowering with the following table.
Draw A (amps) Min Max
During lowering 1.2 A 3.0 A
During raising 0.8 A 3.0 A
M
1 2 3 4 5
PHOTO 193
G
A1
A2
G3
G2
G
