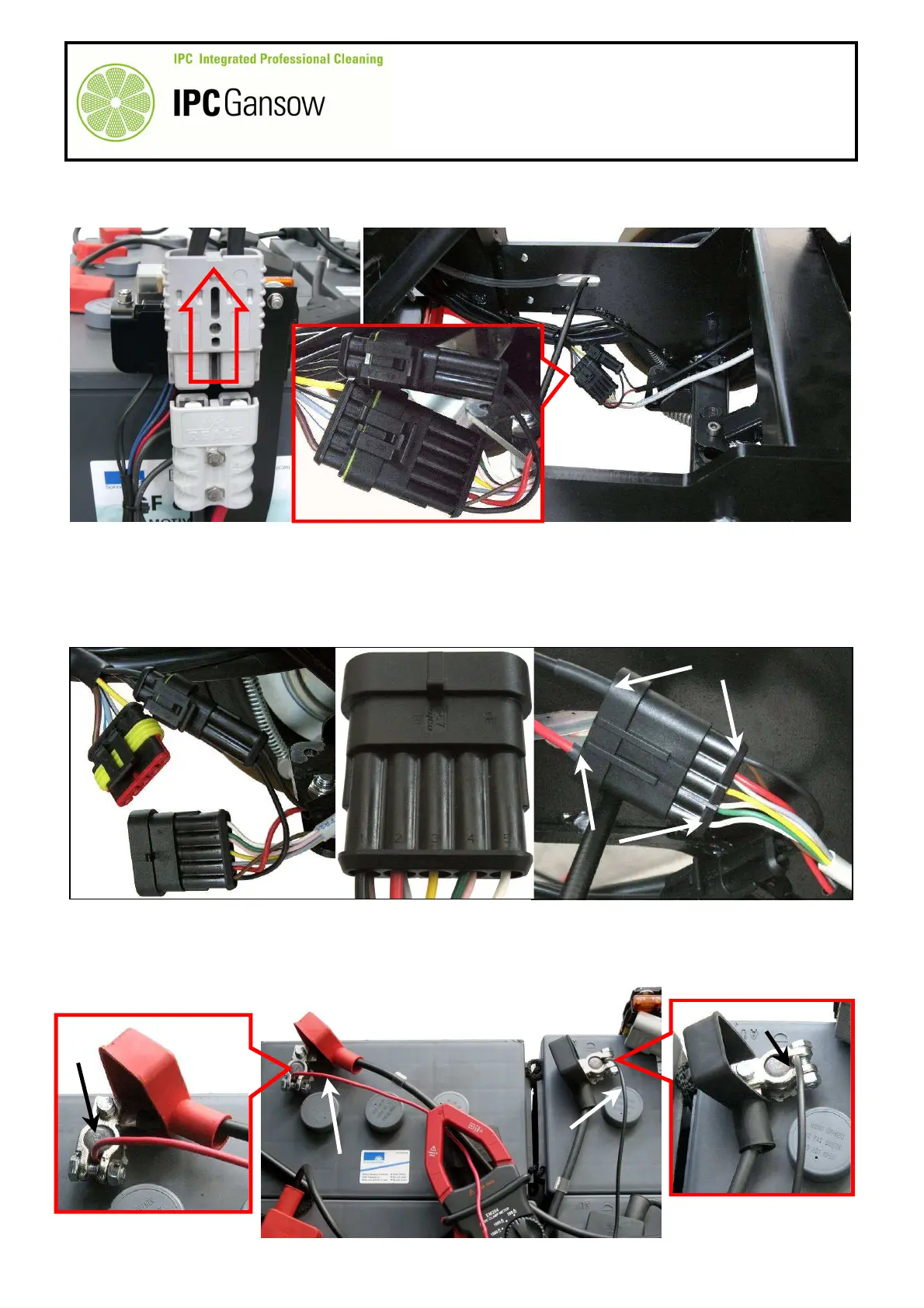

Disconnect the batteries from the machine electronics via the Anderson connector F.
9
Identify the two squeegee actuator connectors G and H.
10
To carry out the tests, you need only disconnect the connector G (the larger 5-way connector), if necessary
remove the plastic tie E and also disconnect the connector H.
11
Carry out the tests with the squeegee mounted and configured for drying.
12
Connect the two wires A1 - A2 to the connector G, connecting the terminal of the red wire A1 to the plug of
the white wire G5 in position 5 of the connector G and the terminal of the black wire A2 to the plug of the
grey and brown wires G1 in position 1 of the connector G.
13
Set the clamp meter to read current, taking the signal directly from the wire A1.
14
Connect the other end of the red wire A1 to the positive pole I of the battery and the other end of the black
wire A2 to the negative pole L.
PHOTO 189
F
G
H
G
G
A1
A2
G5
G1
PHOTO 191
A1
I
L
A2
