IPCGansow CT 230 BT 85 - Page 103

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 92/195

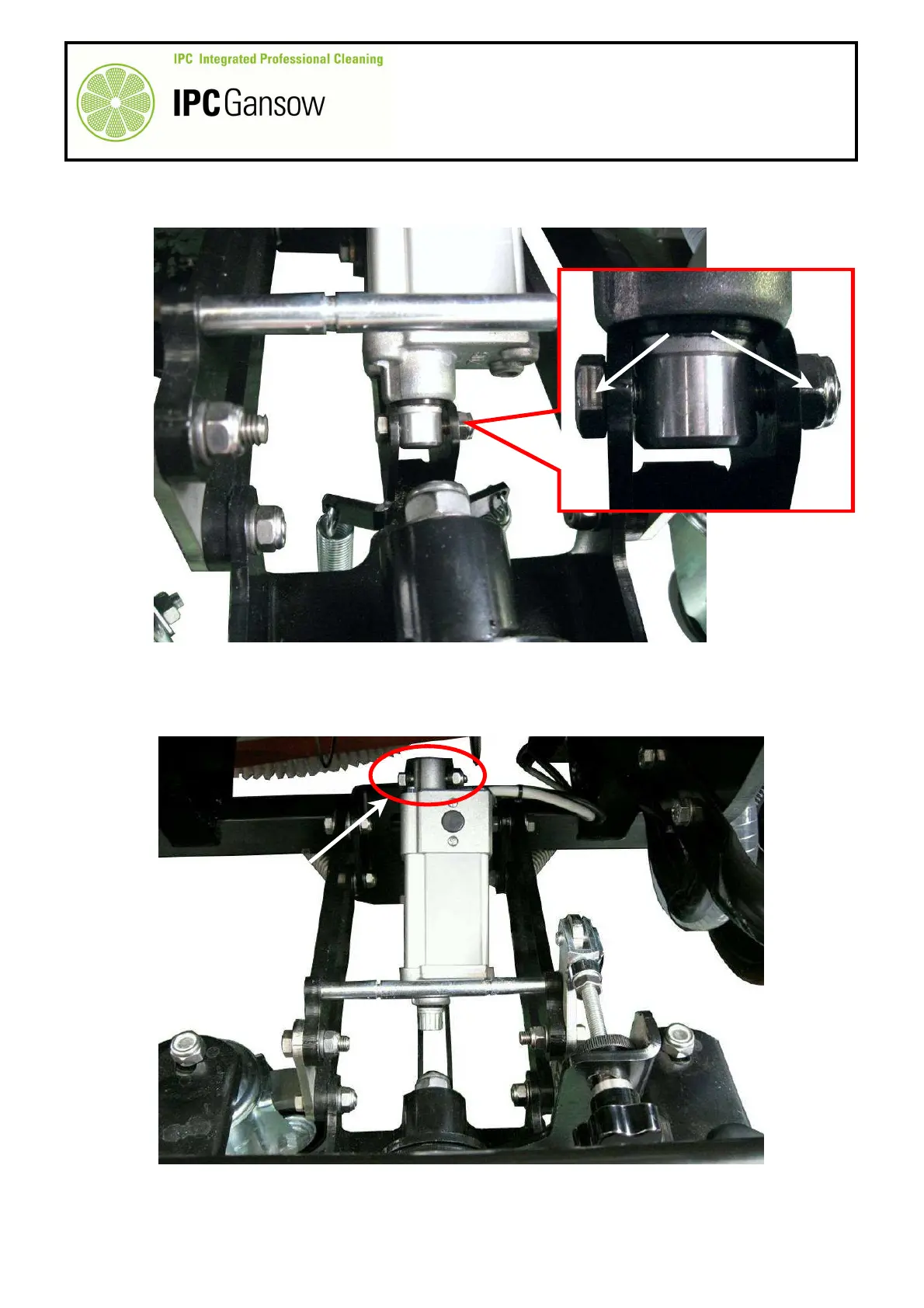

9 Unscrew and remove the bolt E1 fixing the rod of the actuator E to the squeegee mount.
10 Continue by unscrewing the second bolt E2 fixing the body of the actuator E to the machine chassis.
PHOTO 197
E
E1
E2
PHOTO 198
E
