PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
9/195
19

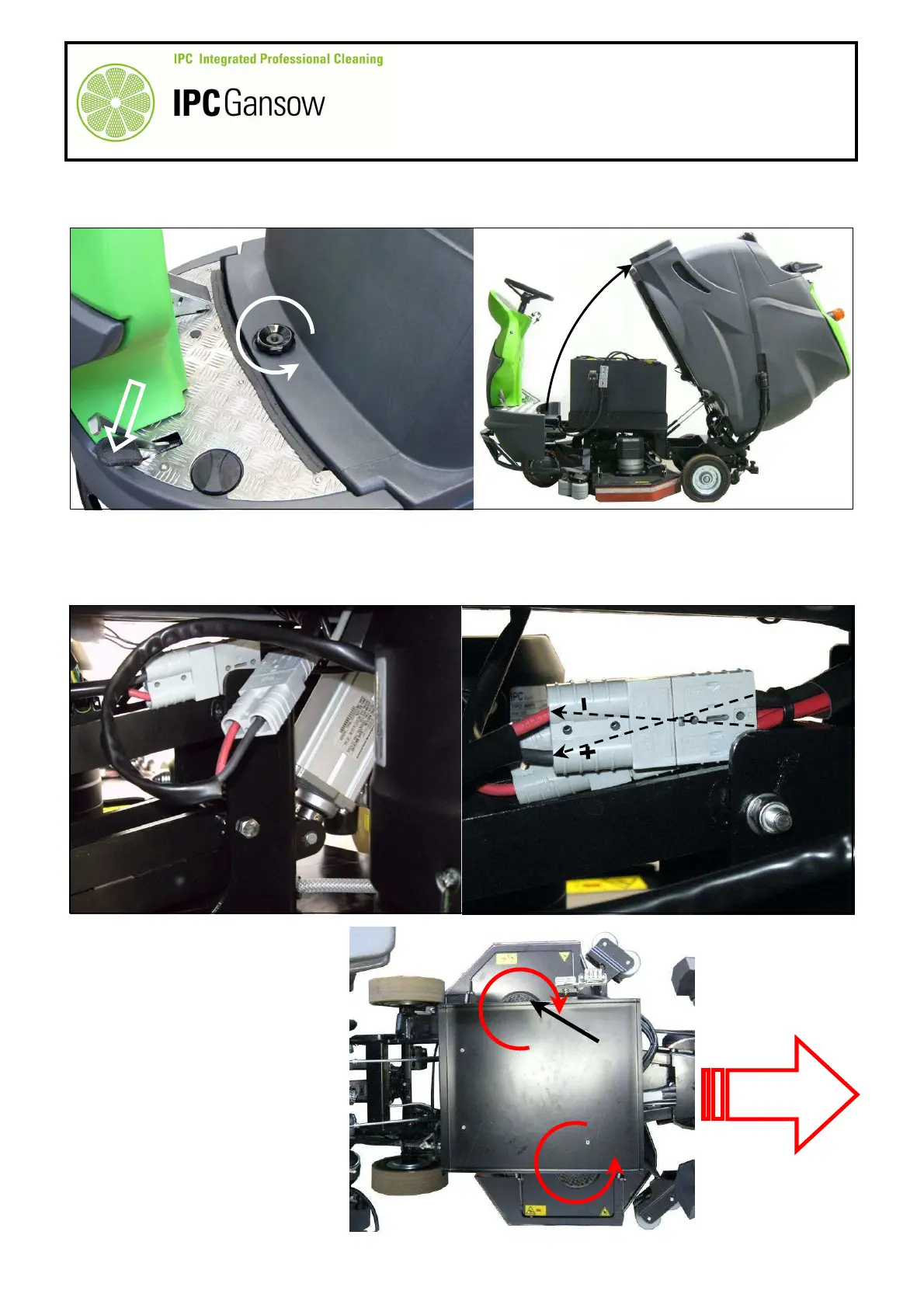

Unscrew the knob D by turning it anticlockwise to release the tanks from the machine chassis.
20
Press the pedal E to put the parking brake on.
21
Lift the dirty water and detergent tanks to access the brush motors.
22
Identify the left F1 and right F2 brush motor power connectors and, without disconnecting them, connect the
clamp meter to first one, then (after performing the test) the other to read the current draw of both brush
motors separately.
23
The polarities of the left brush motor connector F1 are the opposite to those of the right brush motor
connector so that the motor rotates in the opposite direction (clockwise).
24
When correctly connected, the
electrical connection of the
brush motors F causes the two
motors to rotate in opposite
directions, with forwards
rotation towards the centre of
the machine.
F1
F2
D
E
PHOTO 21
PHOTO 22
FRONT
PHOTO 23
