IPCGansow CT 230 BT 85 - Page 21

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 10/195

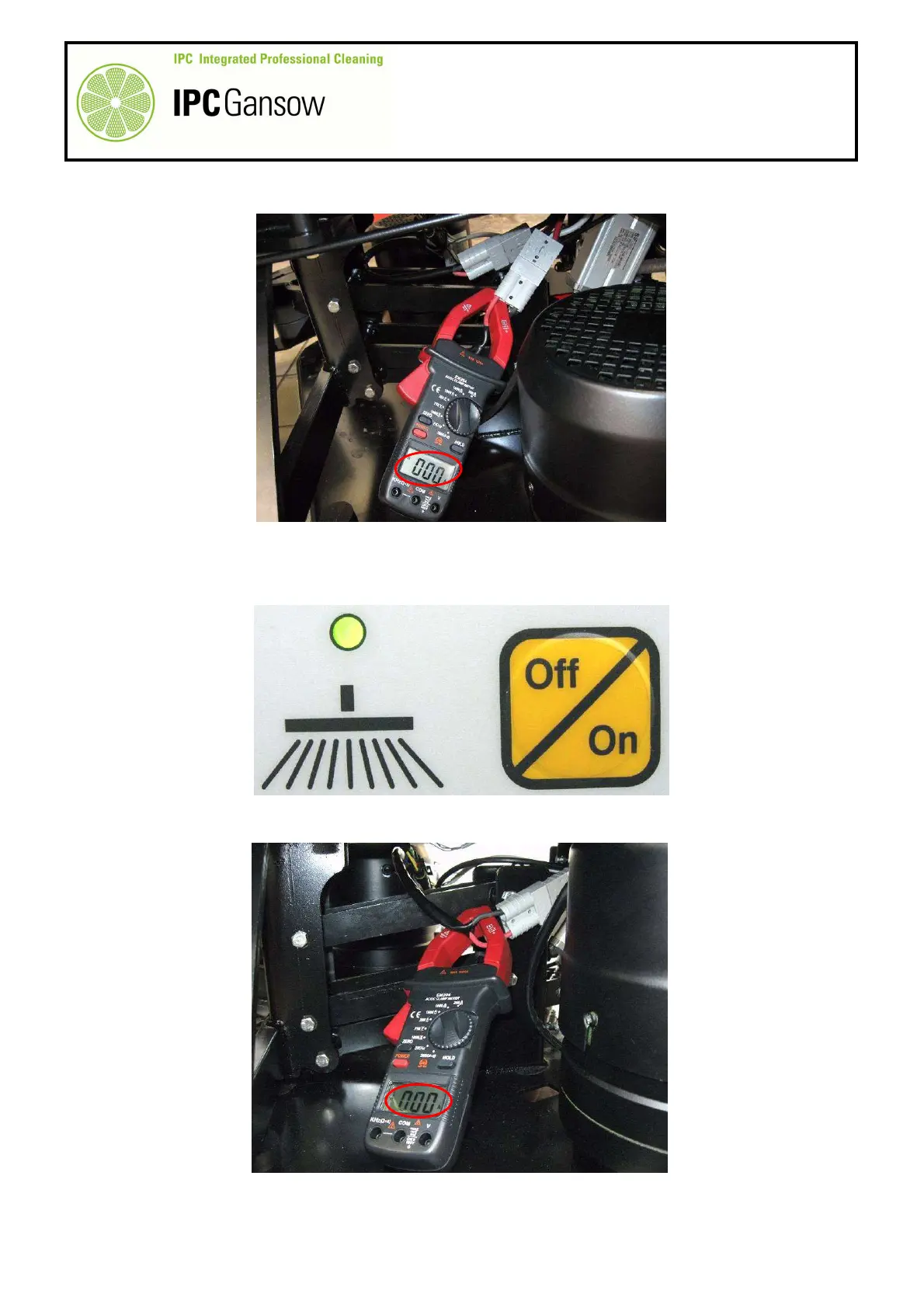

25 Test by connecting the clamp meter to the red wire of the connector F1 (or F2, the order in which the two
motors are tested is irrelevant) on the left motor F.
26 Press the brush button G to lower the head and start the motors rotating. Read and note the value for the
first motor after a few seconds rotation.
When button G is pressed, the brushes will operate with the Program 1 settings.
27 Press the brush button G again to stop the test in order to connect the clamp to the second motor.
28 Connect the clamp meter to the red wire of the connector F2 on the right motor F.
29 Press the brush button G again to lower the head and start the motors rotating. Read and note the value for
the second motor after a few seconds rotation.
G
PHOTO 25
PHOTO 24
F
F1
F
F
1
PHOTO 26
i
