IPCGansow CT 230 BT 85 - Page 57

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 46/195

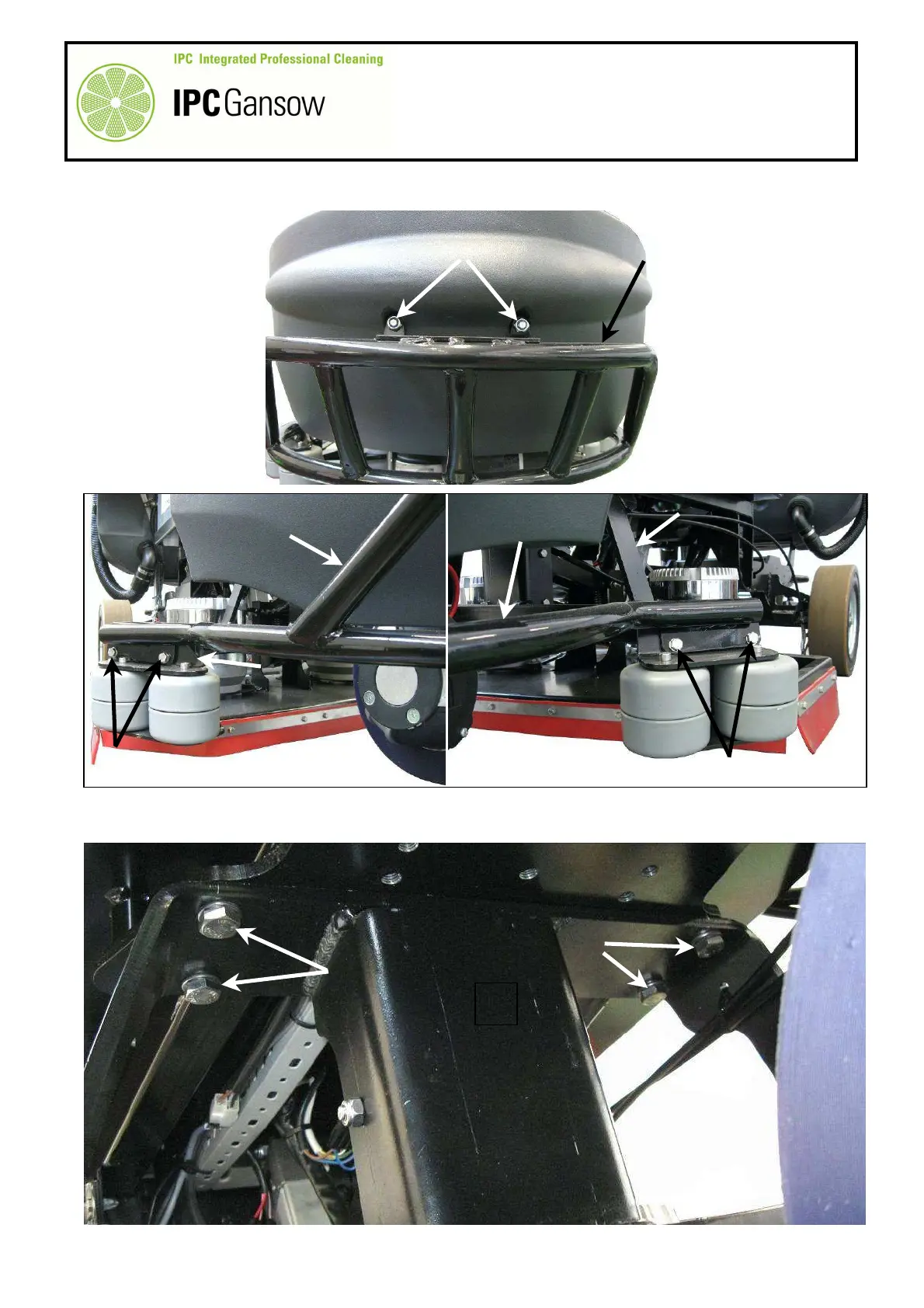

9 Disassemble the front bumper E, removing the two self locking nuts at the front E1 and four bolts E2 fixing
the bumper E to the shock absorber F.
10 Unscrew the four screws F1 fastening the shock absorber F to the machine chassis.
PHOTO 103
E E
F
F
E2
E2
PHOTO 102
E E1
PHOTO 104
F1
F
1
F
