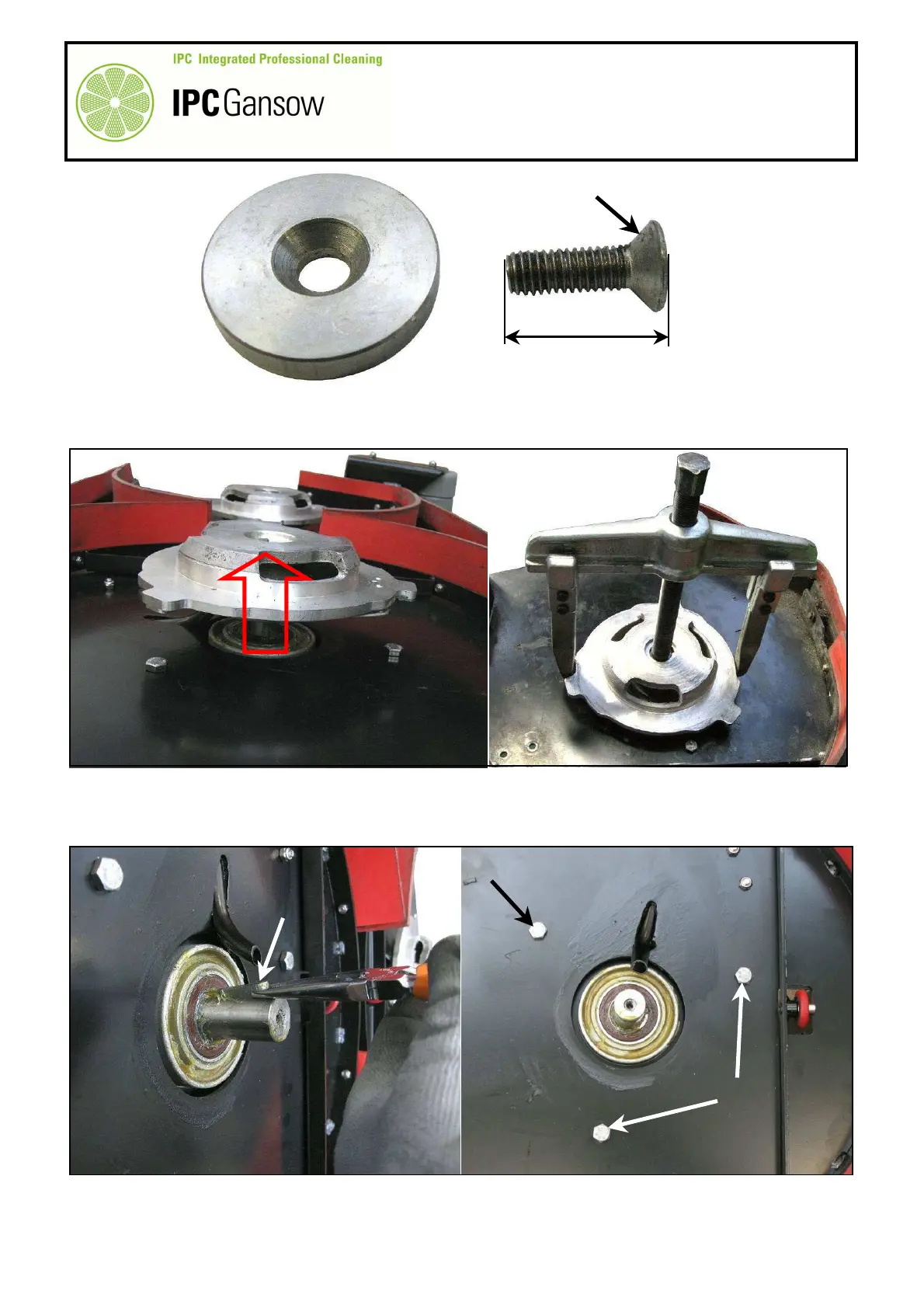

8 Remove the drive flange B from the brush motor reduction unit shaft.
9 If the drive flange B is difficult to remove, you are recommended to use an appropriate extractor.
10 Extract the tab E (h 6.9 X 8 X L 30) to avoid losing it.
11 Unscrew the three bolts F fixing the motor flange H to the head.
B
B
PHOTO 110
D
C
M 6 x 20 mm
PHOTO 109
PHOTO 111
E
F
F
