IPCGansow CT 230 BT 85

To Next Page

To Previous Page

PLDC01938

REVISION 00

01/06/2011

TECHNICAL DEPT.

Stavale

- date 05/09/2011

72/195

Reassemble all components following the above instructions.

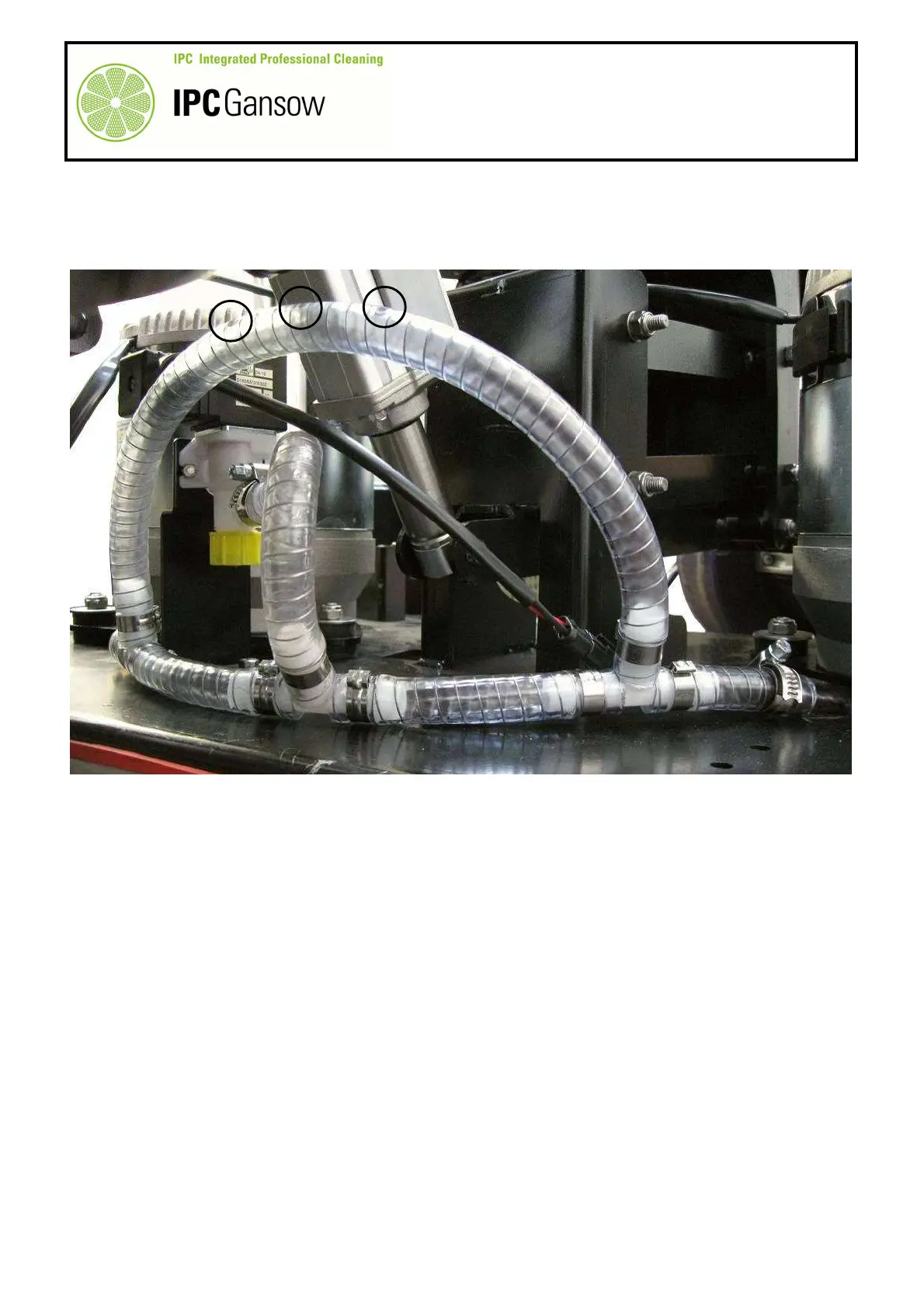

Position the compensator hose behind the solenoid valve and electromechanical actuator, see photograph

below.

PHOTO 161
