PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
77/195
16

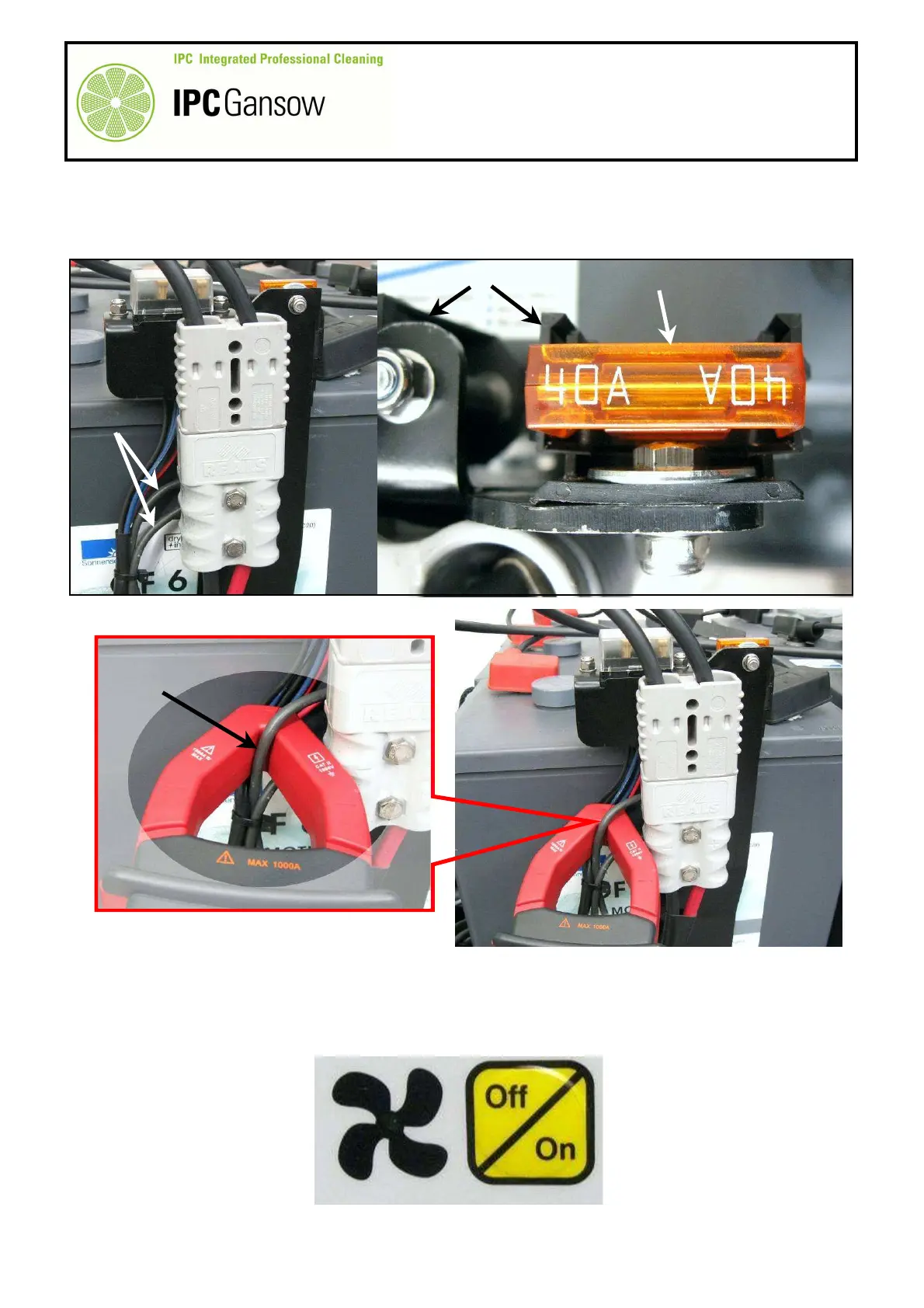

On the fuse holder F, identify the maxi fuse F4 protecting the suction motor.
17
Connect the clamp meter between the two wires A4 of the suction motor A.
18
The clamp can be connected to either of the two wires A4 connected to the fuse F4.
19
Position the clamp meter to A (amps) and DC.
20
Turn the ignition key to position "1"
21
Press the button M to start the suction motor.
M
PHOTO 171
PHOTO 169
F4 F
F4
L
A4
PHOTO 170
A4
