6.22 Dynon Pitot (all J-Series)
6.22.1 Description
 As a part of the optional Dynon instrumentation system a special pitot head can be used which
allows the measurement of the angle of attack of the aircraft in flight.
CAUTION
This probe incorporates water drain holes for flying in rain and must be removed before leak
testing the pitot system.
6.22.2 Removal, Inspection & Installation
Required Tools:
Screwdrivers
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
 Remove the screws holding the pitot head to the strut and the screws holding the strut to the fairing.
 Installation is the reverse.

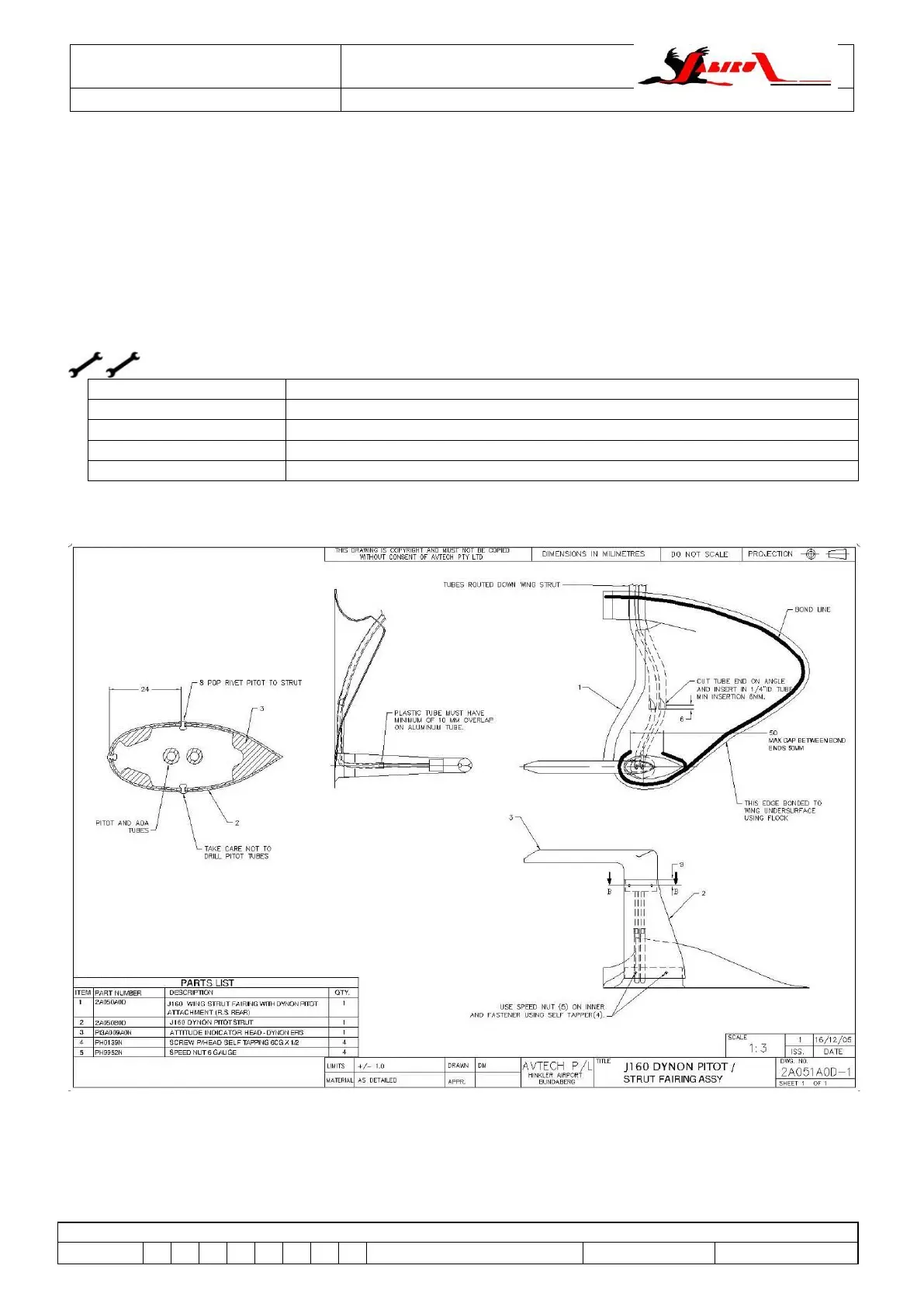

Figure 65 – Dynon Pitot Installation (all J-Series)
