Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 127 of 298

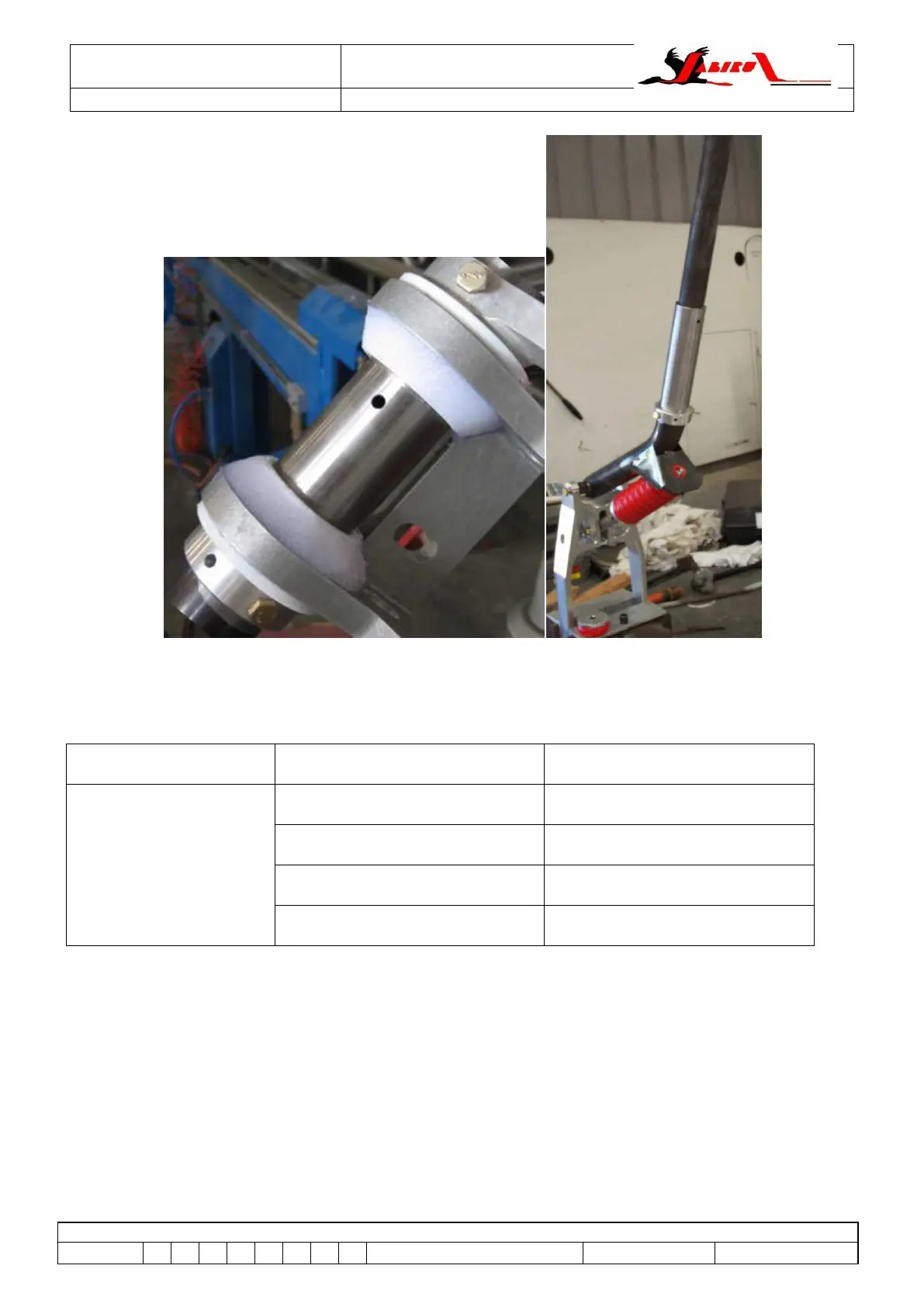

Figure 76 – Nose Leg Housing & Assembly (all J-Series)

6.39 Trouble Shooting – Nose Leg (all J-Series)

Table 0-2 – Trouble shooting – Nose Leg.

Trouble

Probable Cause

Remedy

Nose wheel shimmy

Nose strut bolts loose

Tighten bolts

Loose or worn steering link

Tighten, replace defective parts

Nose wheel out of balance

Refer Section 6.32

Wheel bearings loose

Replace

6.40 Nose Wheel Balancing

 Refer to Section 6.32 for wheel balancing information.

Lever

Nose leg
