Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 28 of 298
Table 2-7 – J250/J450 Specifications
Model
J250
J450
Number of Seats
2
4
Aircraft Maximum Weight
700kg
544kg (category limitation)
700kg
Fuel Capacity
135 litres
135 litres
Oil Capacity
3.5 litres
3.5 litres
Engine Model
Jabiru 3300A
Jabiru 3300A
Propeller Pitch
Jabiru 53” pitch (1346mm)
Jabiru Scimitar 52” pitch
(1321mm)
Jabiru 53” pitch (1346mm)
Jabiru Scimitar 52” pitch
(1321mm)
Wheel Sizes Standard
500 x 6” rim
500 x 6” rim
Tyres Standard
6” wide, 6 Ply
6” wide, 6 Ply
Tyre Pressures Standard - Mains
310 kPa (45 psi)
310 kPa (45 psi)
Tyre Pressures Standard - Nose
207 kPa (30 psi)
207 kPa (30 psi)

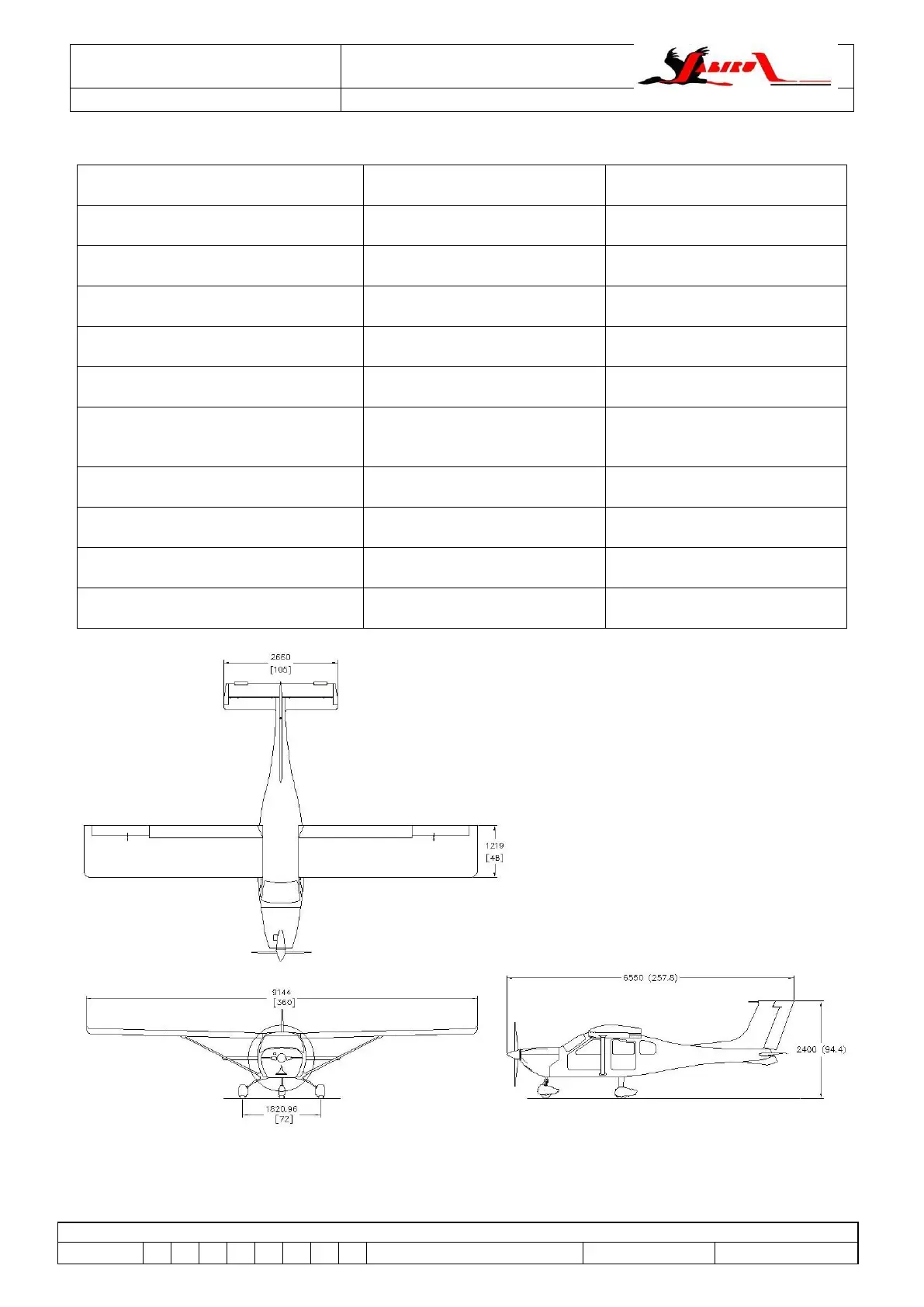

Figure 7 – J250 / J450 General Arrangement
