Jabiru j430 - Figure 3 - J170-C & Variants General Arrangement

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 24 of 298
Table 2-4 – J170 Specifications
Model
J170-C
J170-D
J170-UL
(Europe Kit)
Other J170
Variants
Aircraft Maximum Weight
600kg
(1320lb)
450kg
(992lb)
544kg
(1190lb)
Fuel Capacity
135 litres
75 litres
135 litres
Oil Capacity
2.3 litres
2.3 litres
2.3 litres
Engine Model
Jabiru 2200B
Jabiru 2200
Jabiru 2200
Propeller Pitch
Jabiru 42” pitch (1067mm) or
Sensenich 43” pitch (1092mm) or
Sensenich 46” pitch (1168mm)
Jabiru Scimitar 38” pitch (965mm)
Jabiru 42” pitch
(1067mm)
Jabiru 42” pitch
(1067mm)
Wheel Sizes Standard
500 x 6” rim
400 x 4” rim
500 x 6” rim
Tyres Standard
6” wide, 6 Ply
4” wide, 4 ply
6” wide, 6 Ply
Tyre Pressures Standard
- Mains
310 kPa (45 psi)
179 kPa (26 psi)
179 kPa (26 psi)
Tyre Pressures Standard
- Nose
207 kPa (30 psi)
137 kPa (20 psi)
137 kPa (20 psi)

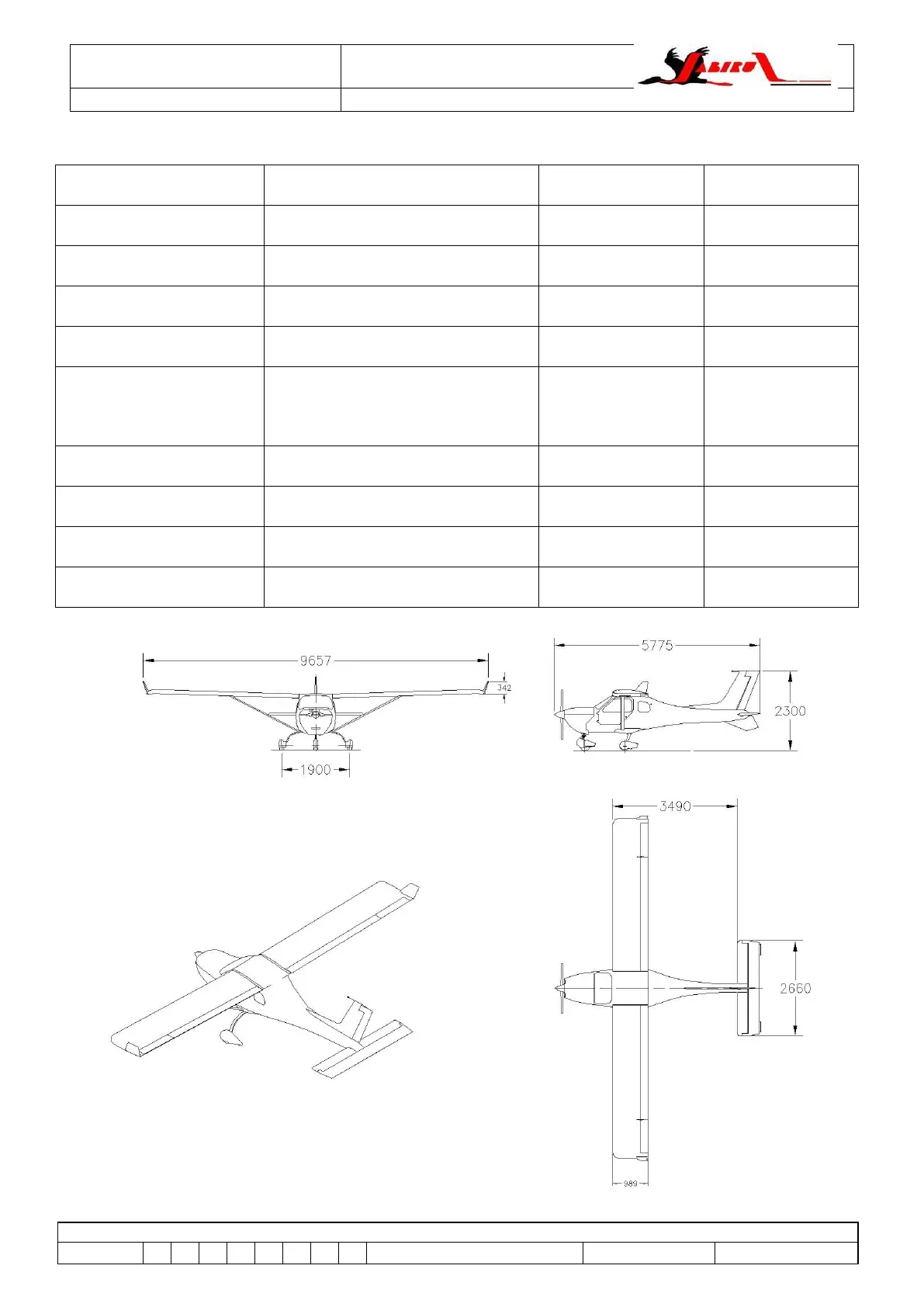

Figure 3 – J170-C & Variants General Arrangement
