Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 96 of 298

6.15.3 Repair

 All repairs must be referred to Jabiru Aircraft Pty Ltd or our approved local agent.

6.15.4 Installation

 Refer to Section 6.14 for installation details.

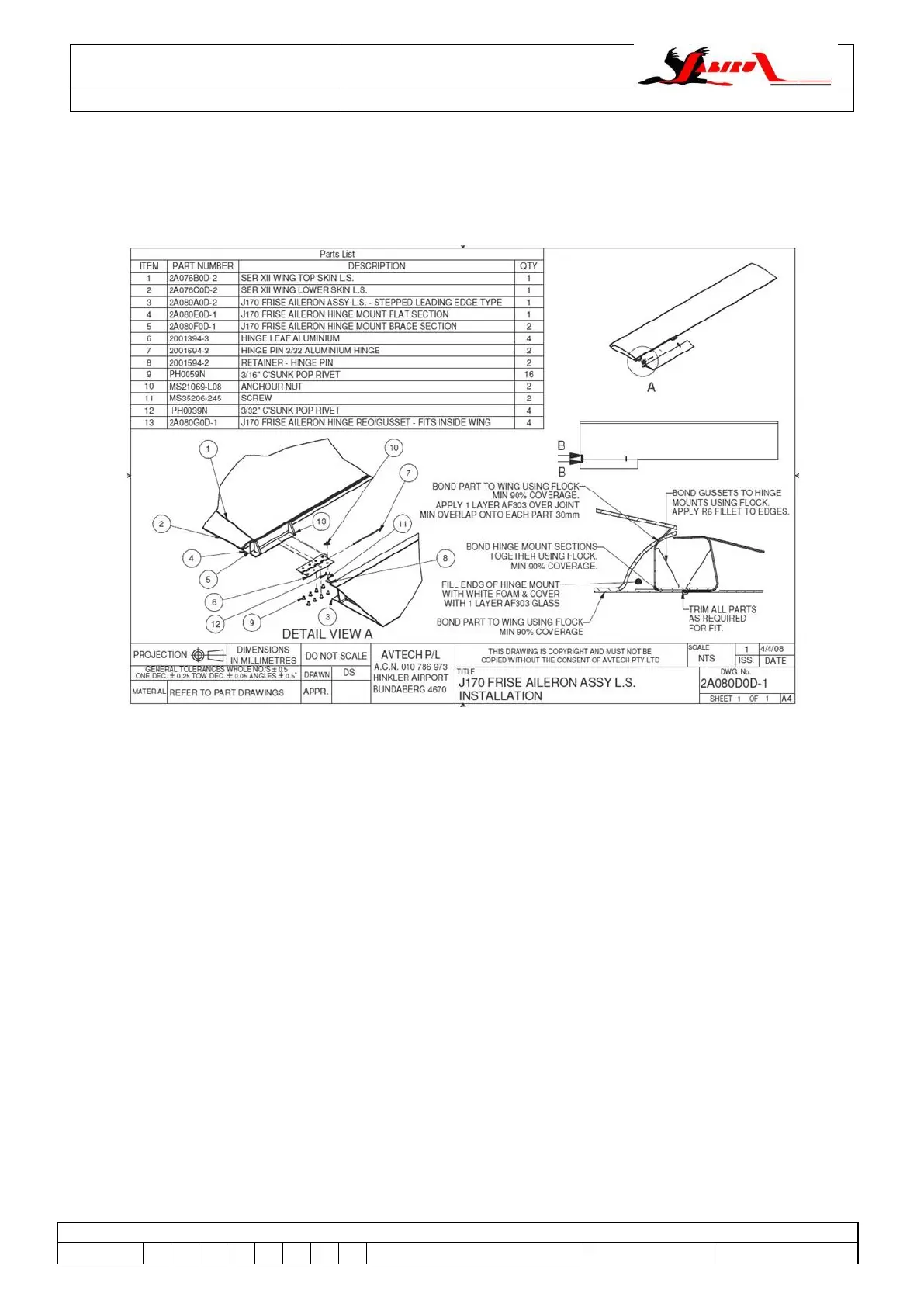

Figure 53 – J170 Friese Aileron Installation (J170)
