Jabiru j430 - Figure 97 - Cable & Clamp Comparison

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 149 of 298

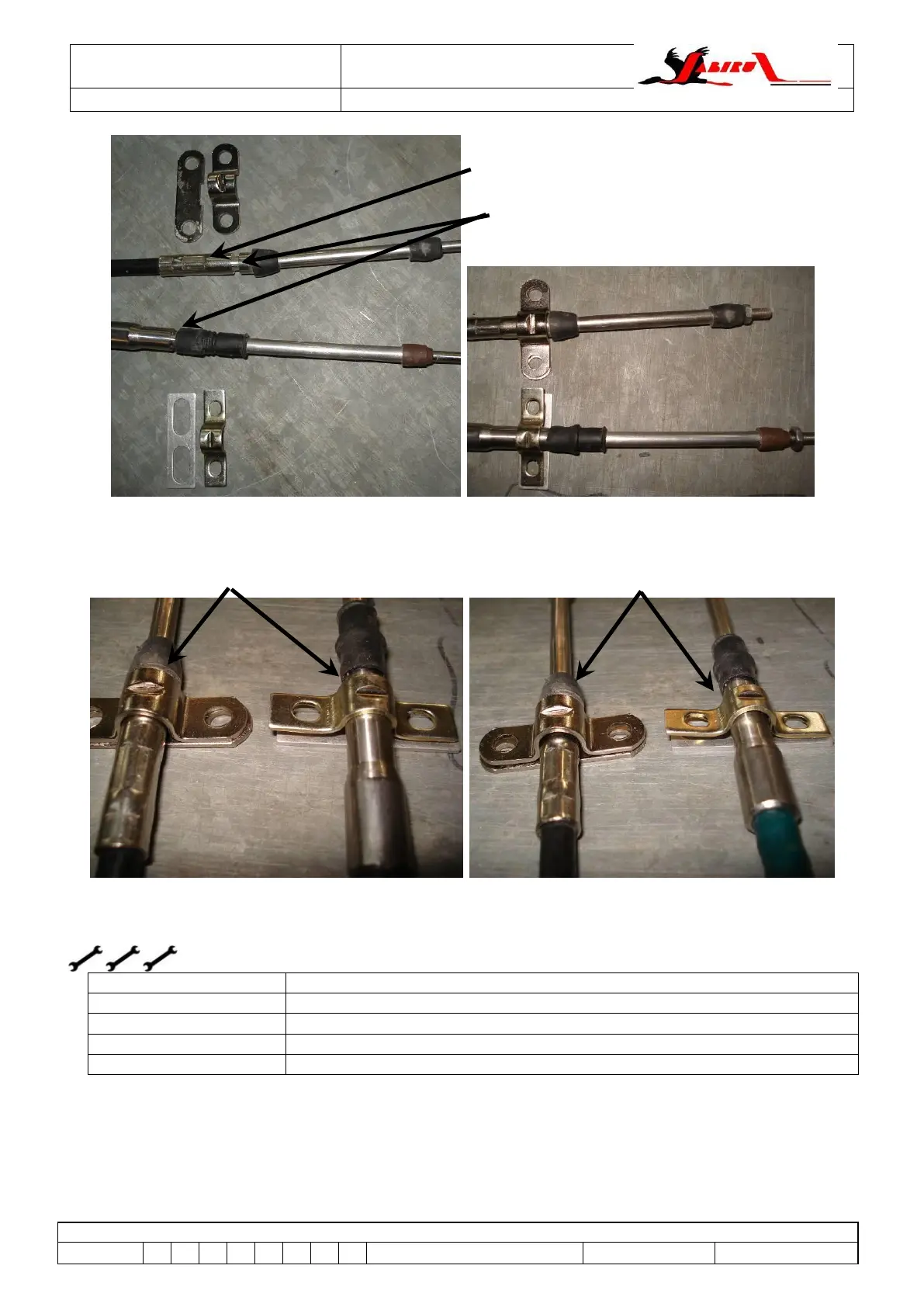

Figure 97 – Cable & Clamp Comparison (all J-Series)
Figure 98 – Correct and Incorrect Clamp Installation (all J-Series)
6.52.4 Control Cable Installation
Required Tools:
As required in Section 6.52.2
Parts and Material:
Replacement control cables and clamps
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 Installation procedure is the opposite of removal procedure outlined above.
 Ensure the cable clamps used match the cables and are properly installed.
WARNING
Failure to properly install control cables may result in loss of control of the aircraft.
Clamps correctly assembled. Locking
tangs correctly fitted, clamp fitting
snugly around body of cable.
Clamps incorrectly assembled. Locking
tangs misaligned, clamp not fitting
properly around body of cable.
Crimp visible in trim cable fitting.
Clamp locking slots
