Jabiru j430 - Figure 107 - Flap Controls - Sheet 1 (Fibreglass Motor Mount)

To Next Page

To Previous Page

Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 159 of 298

6.57.4 Installation

Required Tools:

Spanners / Socket Wrench

Screw drivers

Parts and Material:

N/A

Type of Maintenance:

Line Maintenance

Level of Certification:

L2 or LAME (A&P or LSA Repairman / Maintenance)

Return to Service:

L2 or LAME (A&P or LSA Repairman / Maintenance)

 Installation is the reverse of removal.

 Ensure the flap position indicator is positioned correctly.

 Ensure tape is removed from flaps and an operational test carried out before use.

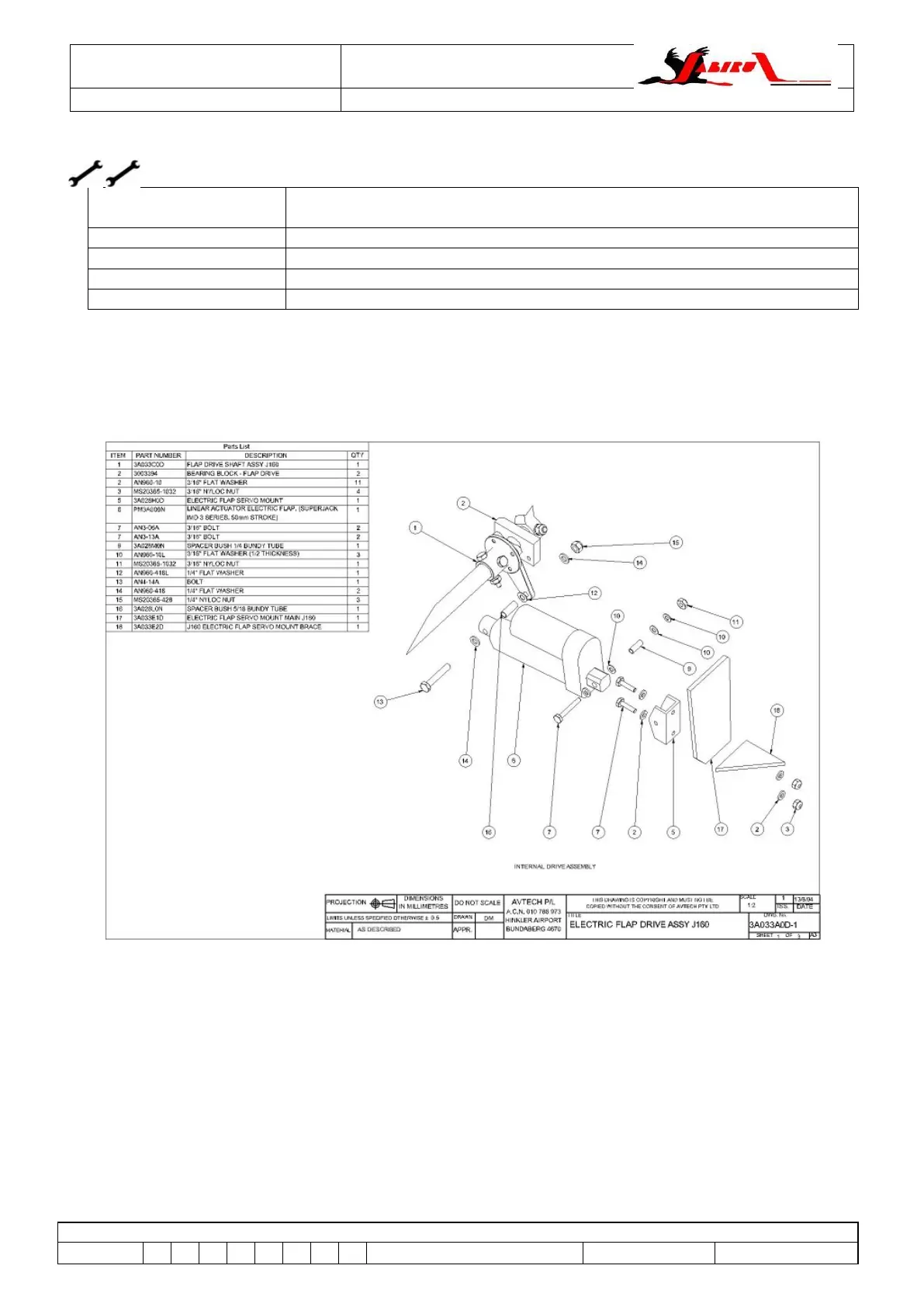

Figure 107 – Flap Controls – Sheet 1 (Fibreglass Motor Mount) (all J-Series)
