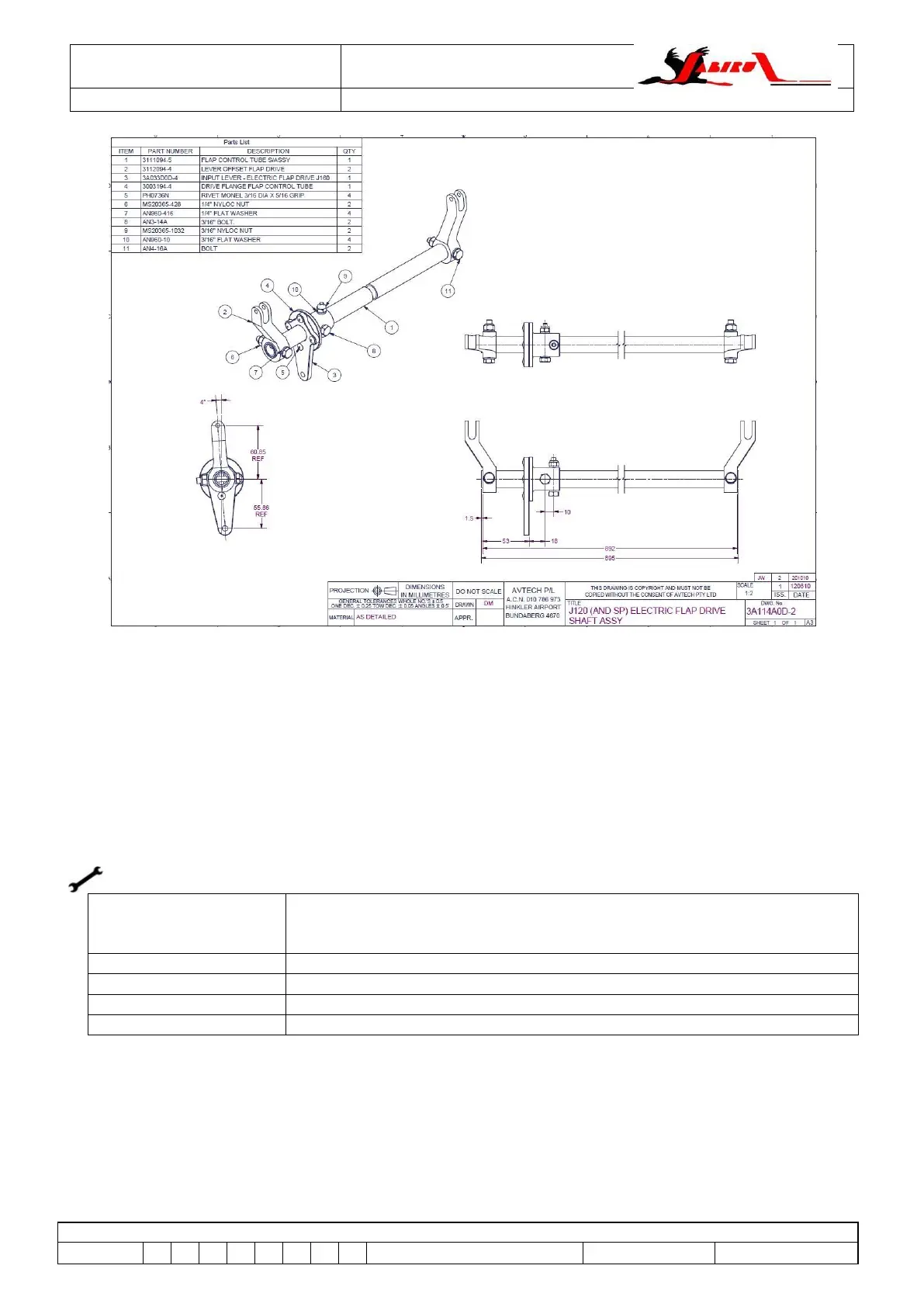

Figure 117 - Flap Cross Tube Assembly (J120)
6.59 Flap Position Indicator (all J-Series)
6.59.1 Description
 2 different flap position indicators have been used in Jabiru Aircraft (plus the manual handle which
also acts as the position indicator for manual flap variants).
 Both indicators consist of a cable-driven indicator which moves inside a housing. Indicators are
mounted to the windscreen / door pillars.
6.59.2 Flap Position Indicator Removal
Required Tools:
Screwdriver
Drill
Spanners / Socket wrench
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
1. Undo screws holding indicator to “A” pillar.
2. For Type 1 indicators: drill rivets and disassemble indicator.
3. Loosen bolt on flap drive motor shaft & remove cable.
